Nothing beats the excitement of standing at the start line. For you, every stop light and crosswalk line is a chance to win again. Standing-start-sprints on your commute to work. Total concentration. Total pavement domination. No longer do you have to shave your legs to lead the pack.

MSRP

3,299

Color

Start Your Journey

URBANRUSH GALLERY

Balance of power, stiffness, and speed in a sleek road bike chassis.



URBANRUSH FEATURES

The ultimate in road bike power, style and performance.

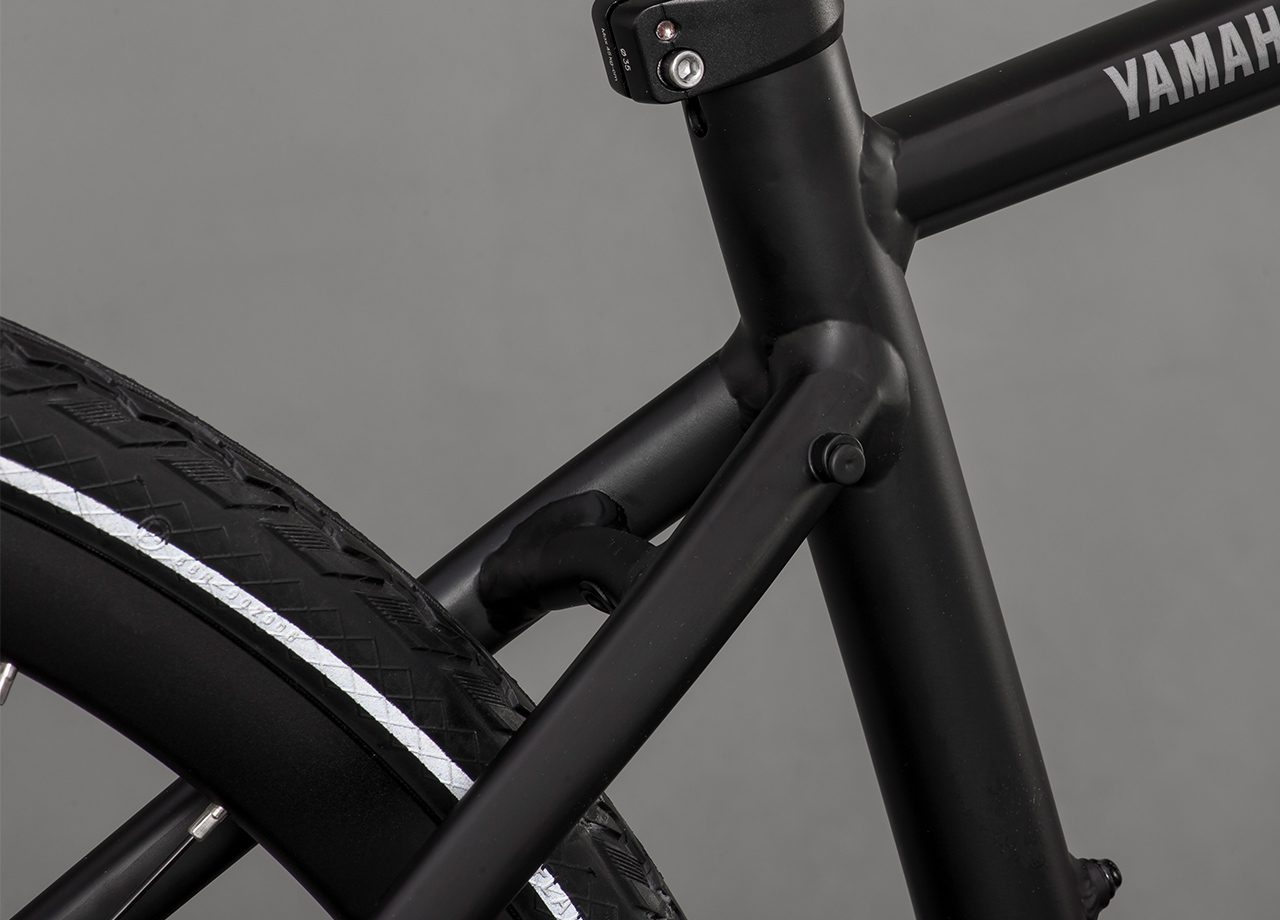

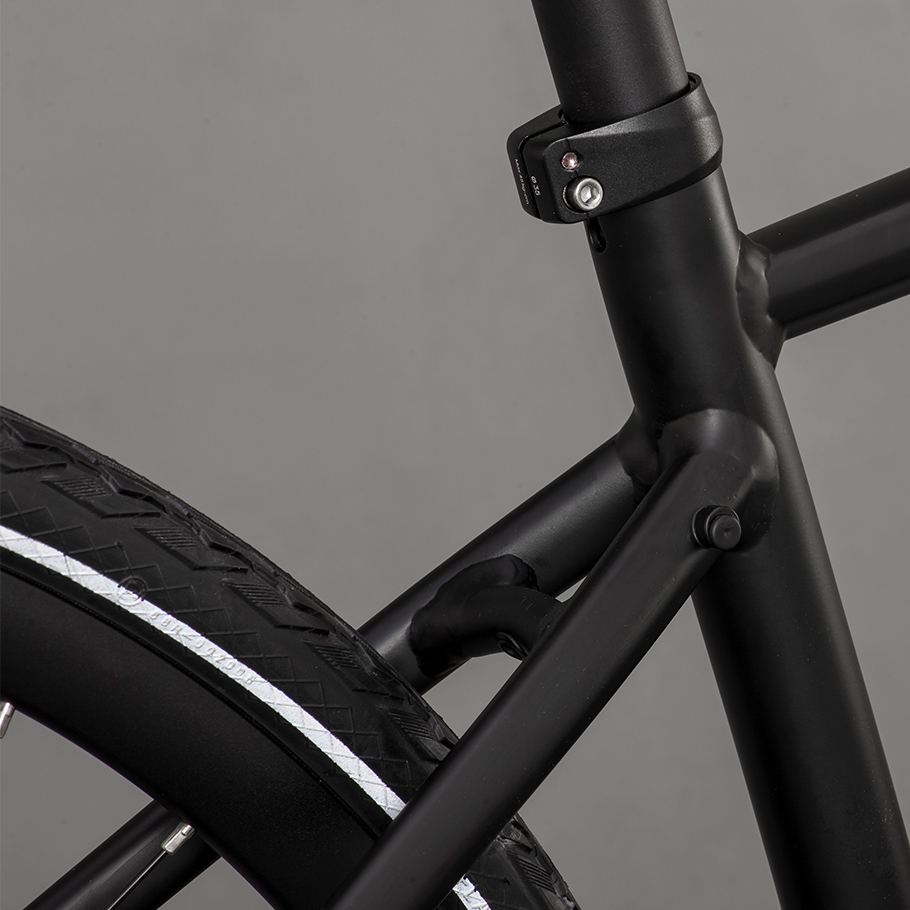

Rear Rack Mounts

Rear Rack Mounts

The built-in bosses on UrbanRush are there to accept Yamaha’s accessory rear rack to help dial in your ultimate commuter.

PWseries SE Drive Unit

PWSeries SE Drive Unit

At the heart of UrbanRush is Yamaha’s awesome PWSeries SE center mount drive unit. Integrated to the bottom bracket, the drive unit provides a low center of gravity for exceptional handling. The four levels of power assist assure UrbanRush lives up to it’s name.

Compact Multi-Function Display

Compact Multi-Function Display

Large ergonomic control switches and easy to read LCD multi-function display are designed to keep your focus on what’s ahead. The color-coded LED assist level indicator is easy to see at a glance. The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch. We didn’t forget the USB power supply port and Bluetooth® connectivity to complete the package.

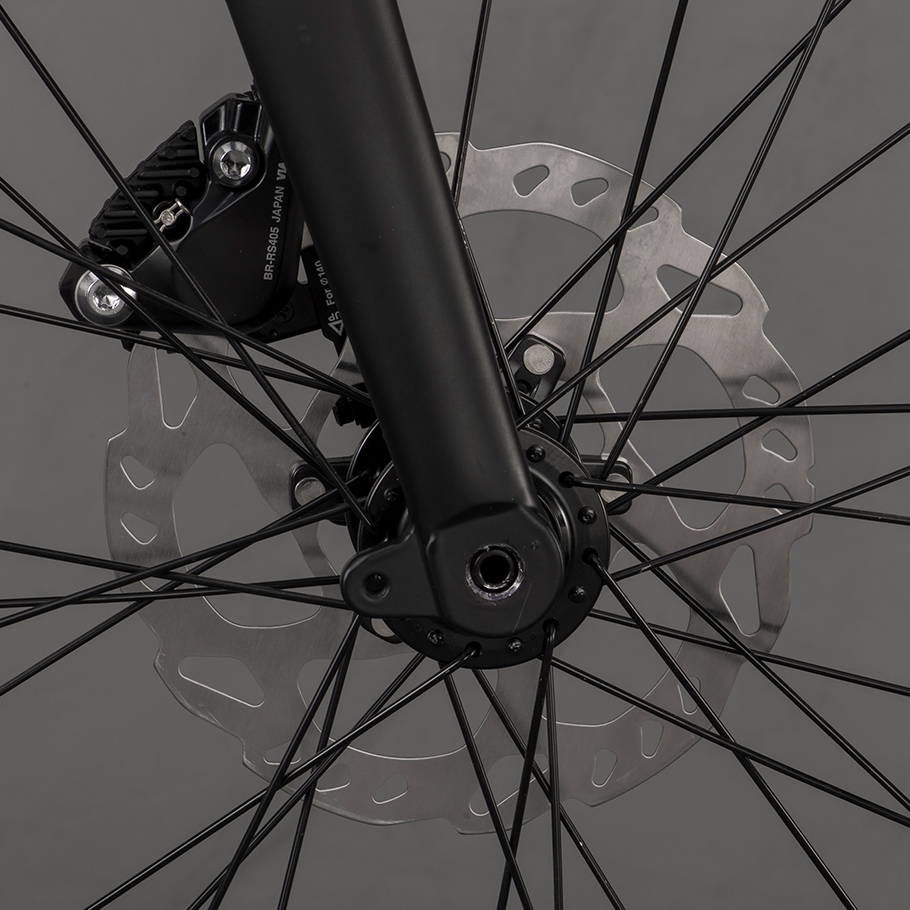

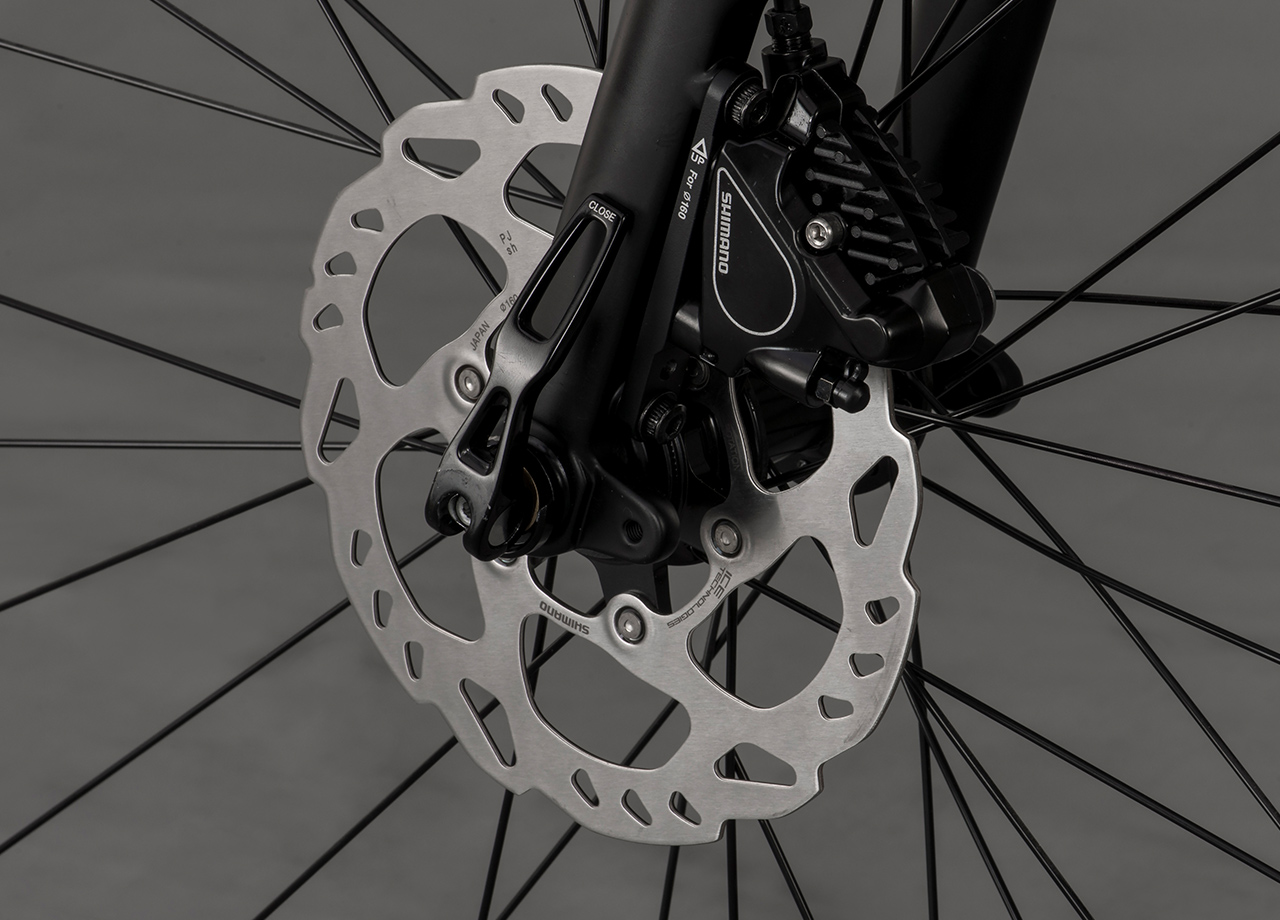

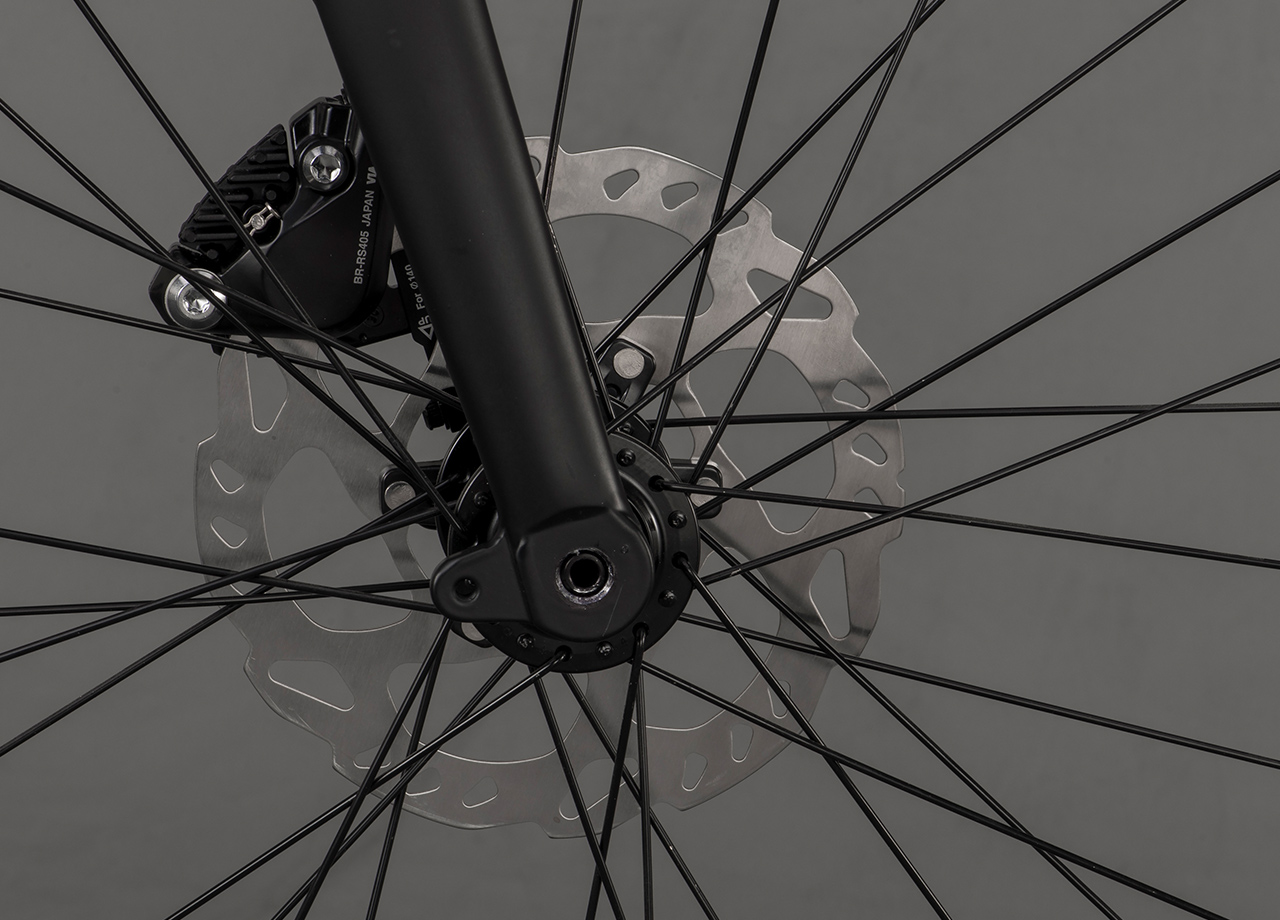

Hydraulic Disc Brakes

Hydraulic Disc Brakes

Shimano Tiagra hydraulic disc brakes with 160mm center lock rotors ensure strong, confident braking in all conditions. Speaking of all conditions, UrbanRush’s fork has mounting tabs for easy installation of Yamaha’s accessory front fender.

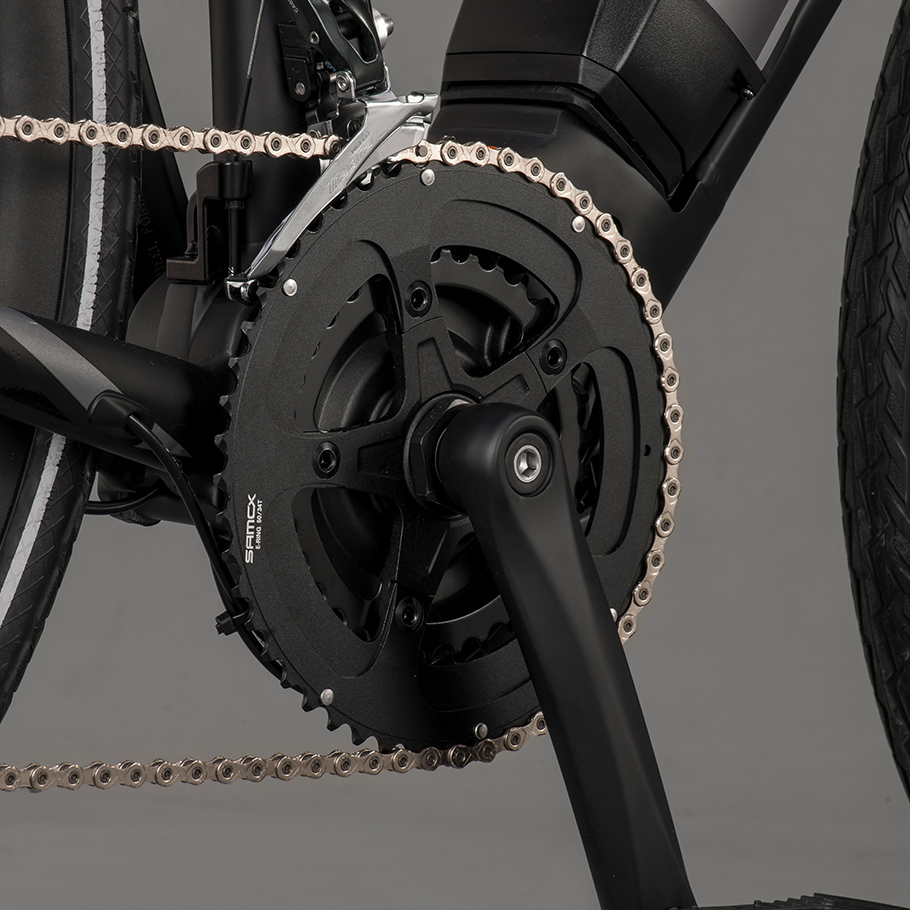

Shimano Tiagra Groupset

Shimano Tiagra Groupset

Shimano’s durable 10-speed Tiagra groupset handles UrbanRush’s shifting duties. The double chainring (50/34T) ensures optimum gear range to conquer any climb your commute presents with ease.

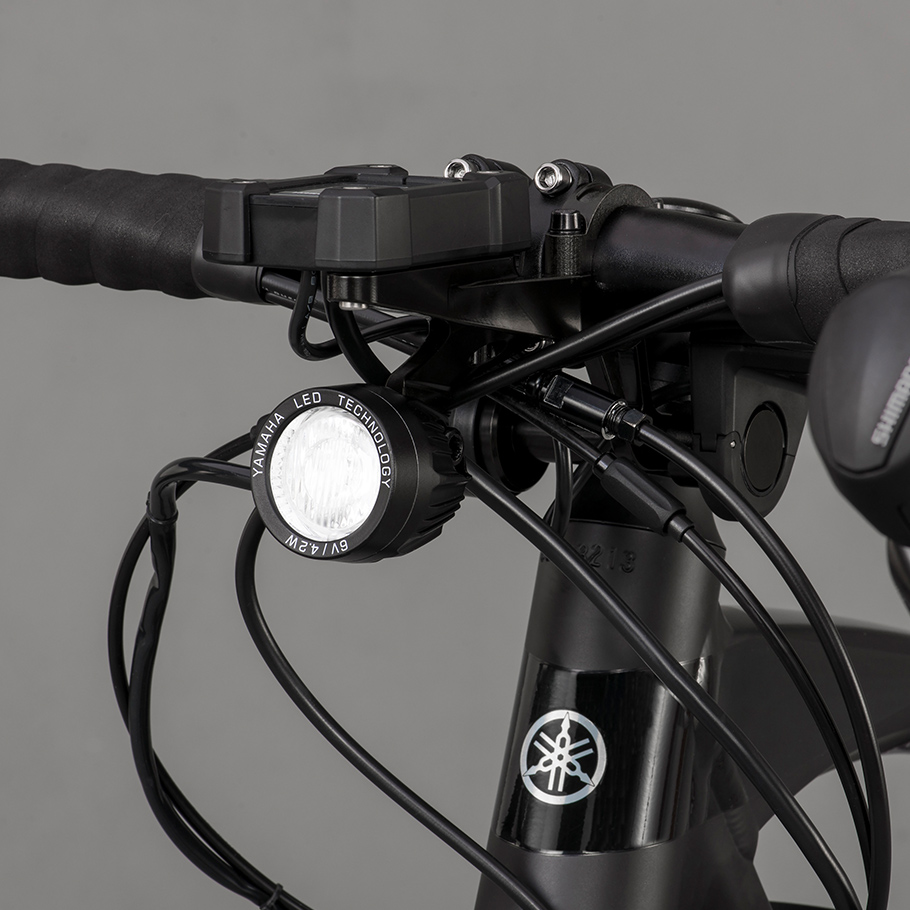

LED Headlight

LED Headlight

We equipped UrbanRush with a powerful LED headlight to help guide the way. The headlight’s on/off button is built into UrbanRush’s multi-function display housing for easy access while riding.

Fender Mount Tabs

Fender Mount Tabs

The fork on UrbanRush has built-in mounting tabs for easy installation of Yamaha’s accessory front fender.

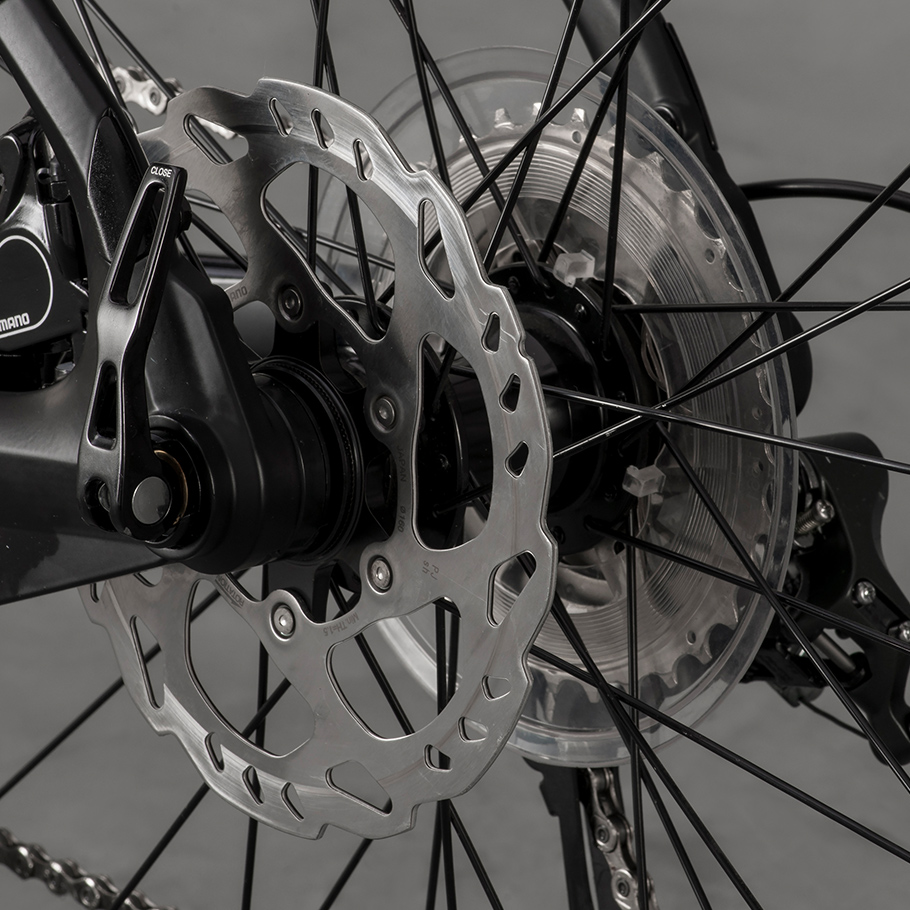

Integrated Rear Hub Speed Sensor

Integrated Rear Hub Speed Sensor

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Clean, out of sight and protected with no spoke mounted magnets to worry about. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

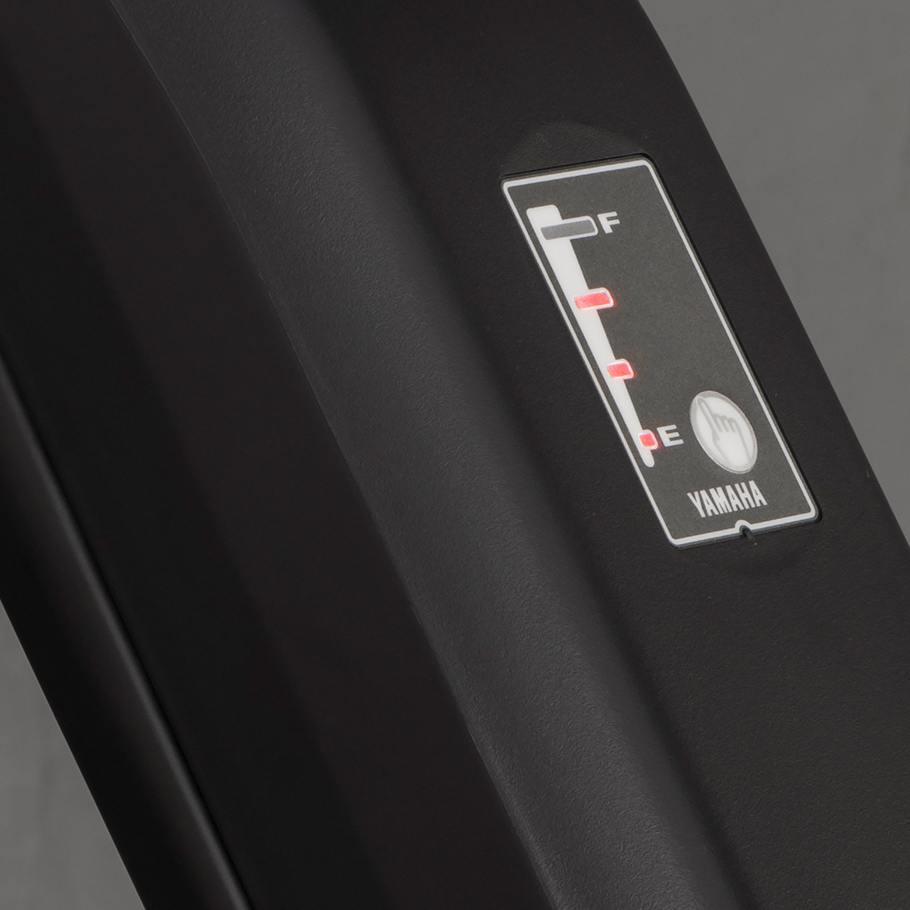

Yamaha 500 Wh Li-ion Battery

Yamaha 500 Wh Li-ion Battery

Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off UrbanRush using the Yamaha high speed charger. Yamaha’s unique side docking battery mount allows for a frame design with a lower stand-over height.

  • Rear Rack Mounts

    The built-in bosses on UrbanRush are there to accept Yamaha’s accessory rear rack to help dial in your ultimate commuter.

  • PWSeries SE Drive Unit

    At the heart of UrbanRush is Yamaha’s awesome PWSeries SE center mount drive unit. Integrated to the bottom bracket, the drive unit provides a low center of gravity for exceptional handling. The four levels of power assist assure UrbanRush lives up to it’s name.

  • Compact Multi-Function Display

    Large ergonomic control switches and easy to read LCD multi-function display are designed to keep your focus on what’s ahead. The color-coded LED assist level indicator is easy to see at a glance. The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch. We didn’t forget the USB power supply port and Bluetooth® connectivity to complete the package.

  • Hydraulic Disc Brakes

    Shimano Tiagra hydraulic disc brakes with 160mm center lock rotors ensure strong, confident braking in all conditions. Speaking of all conditions, UrbanRush’s fork has mounting tabs for easy installation of Yamaha’s accessory front fender.

  • Shimano Tiagra Groupset

    Shimano’s durable 10-speed Tiagra groupset handles UrbanRush’s shifting duties. The double chainring (50/34T) ensures optimum gear range to conquer any climb your commute presents with ease.

  • LED Headlight

    We equipped UrbanRush with a powerful LED headlight to help guide the way. The headlight’s on/off button is built into UrbanRush’s multi-function display housing for easy access while riding.

  • Fender Mount Tabs

    The fork on UrbanRush has built-in mounting tabs for easy installation of Yamaha’s accessory front fender.

  • Integrated Rear Hub Speed Sensor

    Exclusive to Yamaha Power Assist Bicycles is our speed sensor engineered into the rear hub. Clean, out of sight and protected, no spoke mounted magnets to worry about.

  • Yamaha 500 Wh Li-ion Battery

    Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off UrbanRush using the Yamaha high speed charger. Yamaha’s unique side docking battery mount allows for a frame design with a lower stand-over height.



SPECIFICATIONS



SUGGESTED USE Road, Urban Bike Path
COLORS

Onyx  Onyx
SIZE 53cm (S), 55cm (M), 58cm (L)
MSRP $3,299
TOTAL WEIGHT 43lb (M)
MOTOR PWSeries SE
Center mount
Square taper spindle
Triple Sensor System with integrated speed sensor as part of rear hub
Weight: 7.71lb
Rated power: 250W (Nominal), 500W (Max)
Max torque: 70Nm
Max cadence support: 110rpm
Max speed support: 20mph
Support modes: ECO+, ECO, STANDARD, HIGH
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator

Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY Yamaha 500Wh with Charge-life indicator and Self-diagnosis display.
Side-exiting dock station with anti-vibration mounting plate
Weight 6.61lb
500Wh 36V
4-hour charge time
FRAME Yamaha hydroformed and butted alluminum tubing
Internal cable/housing routing
Accessory mount
Fender and Rack compatible
3-bolt motor mount
12 x 142 rear spacing
Integrated speed sensor harness
FORK Alloy, 12mm thru-axle, fender compatible, internal cable housing routed
1 1/8in steerer
HEADSET Integrated headset with 30mm headset spacers
STEM Yamaha Alloy 4-bolt faceplate
31.8 diameter
80mm length (53cm, 55cm)
100mm length (58cm)
HANDLEBAR Alloy drop bar
31.8mm diameter
40cm width (53cm)
42cm (55cm and 58cm)
GRIPS/TAPE Padded cork tape
SEATPOST/SADDLE CLAMP Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR Alloy 2-bolt 35.0mm
SADDLE Yamaha Road Plus Cro-Mo Rail
SHIFTERS Shimano Tiagra Hydraulic Disc Brake Dual Control Lever 2x10 (ST-RS405)
FRONT DERAILLEUR Shimano Tiagra (2 x 10) Braze-on
REAR DERAILLEUR Shimano Tiagra RD-4700 GS 10-Speed
CRANKARM Square taper
165mm (53cm)
170mm (55cm and 58cm)
CHAIN KMC X10e
CASSETTE Shimano 11/32T
CHAINRING(S) 50/34T E-Ring 110 BCD
BRAKES/ROTORS Shimano Tiagra BR-RS405 Hydraulic Disc 160mm SM-RT68 Centerlock Rotor
RIMS 700c Alloy aero rim 27mm depth
Rim width: 22.2mm (OUTSIDE) 17mm (INSIDE)
SPOKES Spokes SUS304
SPOKE NIPPLES Brass
HUBS Anodized
Centerlock brake mount
front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBES CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use
PV Tube
ACCESSORIES Yamaha keys
Yamaha battery charger
LED Headlamp
Bell
1-piece accessory mount for computer, control switch, bell, headlamp
WARRANTY 3-Year on Frame, Motor, Battery* Component Manufacturer's warranty** is supported by Yamaha

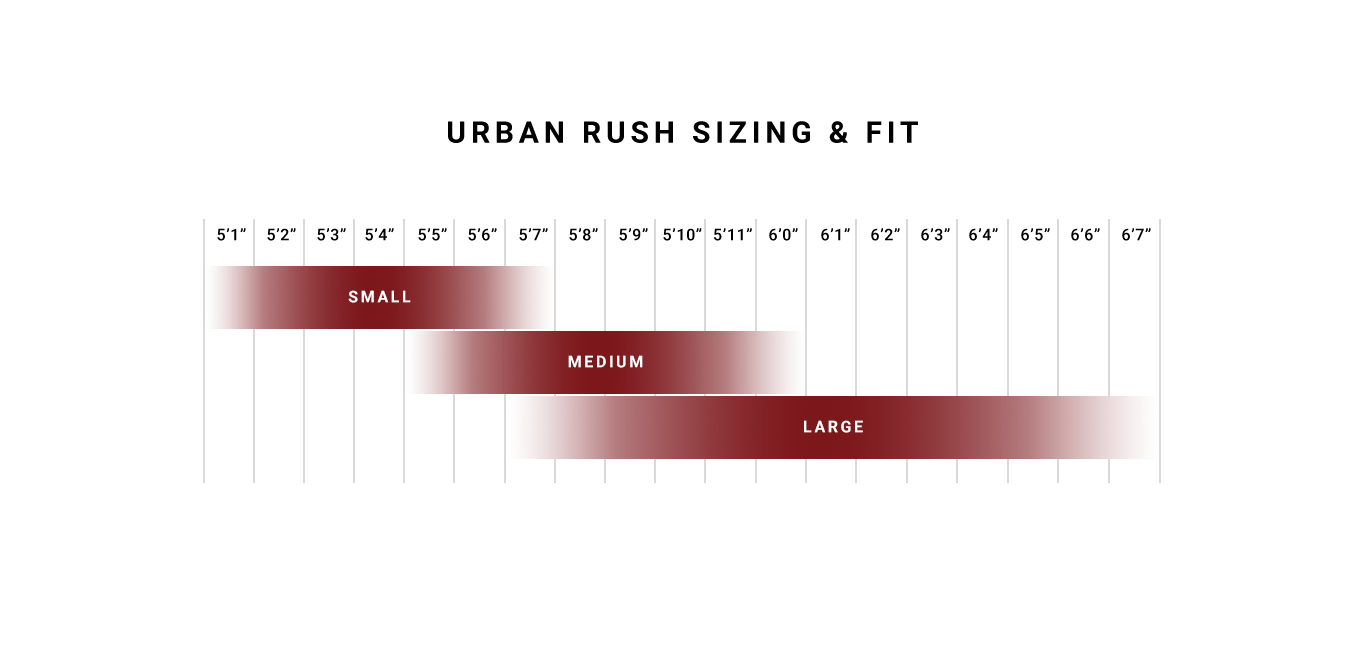

Sizing & Fit



GEOMETRY


S

A TOP TUBE 530
B REACH LENGTH 373
C STACK HEIGHT 548
D STANDOVER HEIGHT 725
E HEAD TUBE LENGTH 130
F HEAD TUBE ANGLE 71
G SEAT TUBE ANGLE 74
  HANDLEBAR WIDTH 400
  CRANK ARM LENGTH 165
  SEAT POST LENGTH 260
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1039
  SEAT TUBE LENGTH 430

M

A TOP TUBE 550
B REACH LENGTH 392
C STACK HEIGHT 555
D STANDOVER HEIGHT 751
E HEAD TUBE LENGTH 135
F HEAD TUBE ANGLE 72
G SEAT TUBE ANGLE 74
  HANDLEBAR WIDTH 420
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 315
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1051
  SEAT TUBE LENGTH 463

L

A TOP TUBE 580
B REACH LENGTH 405
C STACK HEIGHT 572
D STANDOVER HEIGHT 797
E HEAD TUBE LENGTH 150
F HEAD TUBE ANGLE 72.5
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 420
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 350
  STEM LENGTH 100
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1064
  SEAT TUBE LENGTH 530
 SMALLMEDIUMLARGE
A TOP TUBE 530 550 580
B REACH LENGTH 373 392 405
C STACK HEIGHT 548 555 572
D STANDOVER HEIGHT 725 751 797
E HEAD TUBE LENGTH 130 135 150
F HEAD TUBE ANGLE 71 72 72.5
G SEAT TUBE ANGLE 74 74 73
  HANDLEBAR WIDTH 400 420 420
  CRANK ARM LENGTH 165 170 170
  SEAT POST LENGTH 260 315 350
  STEM LENGTH 80 80 100
  BB DROP 61 61 61
  REAR CENTER 455 455 455
  WHEELBASE 1039 1051 1064
  SEAT TUBE LENGTH 430 463 530



GEOMETRY & SIZING


S

A TOP TUBE 530
B REACH LENGTH 373
C STACK HEIGHT 548
D STANDOVER HEIGHT 725
E HEAD TUBE LENGTH 130
F HEAD TUBE ANGLE 71
G SEAT TUBE ANGLE 74
  HANDLEBAR WIDTH 400
  CRANK ARM LENGTH 165
  SEAT POST LENGTH 260
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1039
  SEAT TUBE LENGTH 430

M

A TOP TUBE 550
B REACH LENGTH 392
C STACK HEIGHT 555
D STANDOVER HEIGHT 751
E HEAD TUBE LENGTH 135
F HEAD TUBE ANGLE 72
G SEAT TUBE ANGLE 74
  HANDLEBAR WIDTH 420
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 315
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1051
  SEAT TUBE LENGTH 463

L

A TOP TUBE 580
B REACH LENGTH 405
C STACK HEIGHT 572
D STANDOVER HEIGHT 797
E HEAD TUBE LENGTH 150
F HEAD TUBE ANGLE 72.5
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 420
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 350
  STEM LENGTH 100
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1064
  SEAT TUBE LENGTH 530
 SMALLMEDIUMLARGE
A TOP TUBE 530 550 580
B REACH LENGTH 373 392 405
C STACK HEIGHT 548 555 572
D STANDOVER HEIGHT 725 751 797
E HEAD TUBE LENGTH 130 135 150
F HEAD TUBE ANGLE 71 72 72.5
G SEAT TUBE ANGLE 74 74 73
  HANDLEBAR WIDTH 400 420 420
  CRANK ARM LENGTH 165 170 170
  SEAT POST LENGTH 260 315 350
  STEM LENGTH 80 80 100
  BB DROP 61 61 61
  REAR CENTER 455 455 455
  WHEELBASE 1039 1051 1064
  SEAT TUBE LENGTH 430 463 530
