Only 3 miles to the store, but somehow driving always takes 30 minutes. Redefine routine. Take the eBike! Rip down to the store! Load up the rear-rack and enjoy your new viewpoint behind bars. Pavement or bike path, explore your way.

MSRP

2,999

Color




Start Your Journey

CROSSCONNECT GALLERY

Everyday recreation-utility for those that want to take their gear with them.



CROSSCONNECT FEATURES

Accompanied with Yamaha’s legendary reliability, the CrossConnect gives riders virtually every accessory available to bicycling.

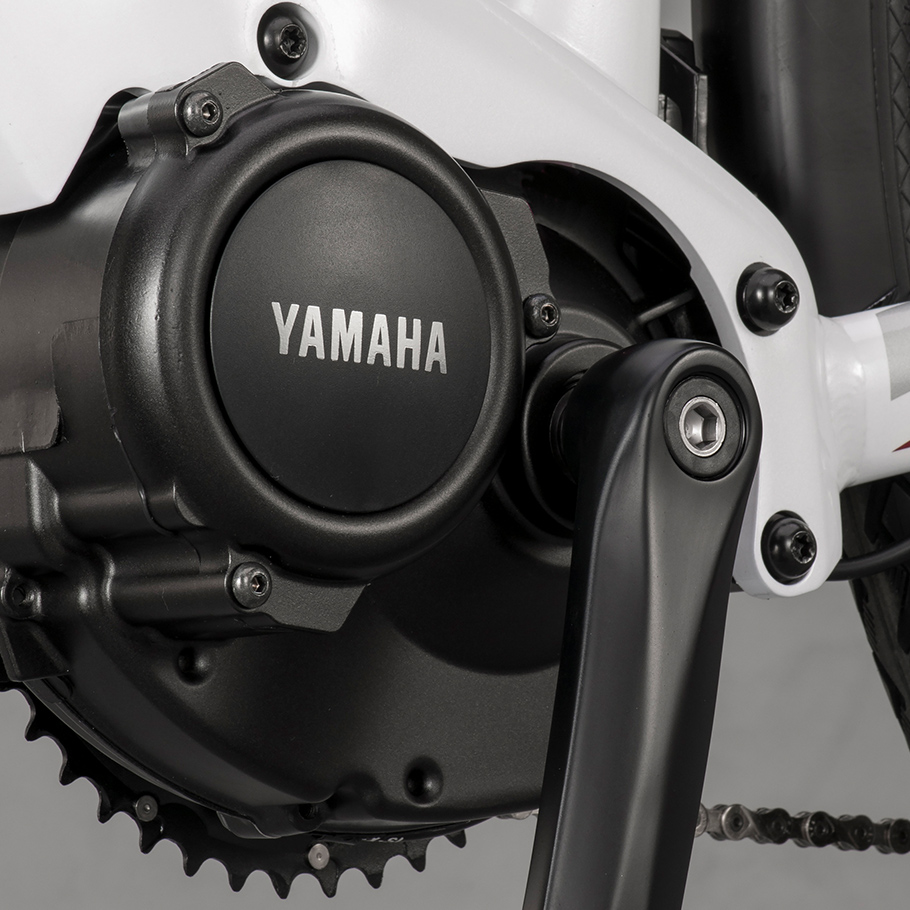

PWseries SE Drive Unit

PWSeries SE Drive Unit

Integrated into CrossConnect’s bottom bracket, the PWSeries SE drive unit provides a low center of gravity for exceptional handling. Four levels of powerful and smooth assist deliver a ride experience the feels natural and organic.

Suspension Fork

Suspension Fork

CrossConnect features a Suntour NCX suspension fork to help smooth out your commute, errand or weekend ride.

Integrated Speed Sensor

Integrated Speed Sensor

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

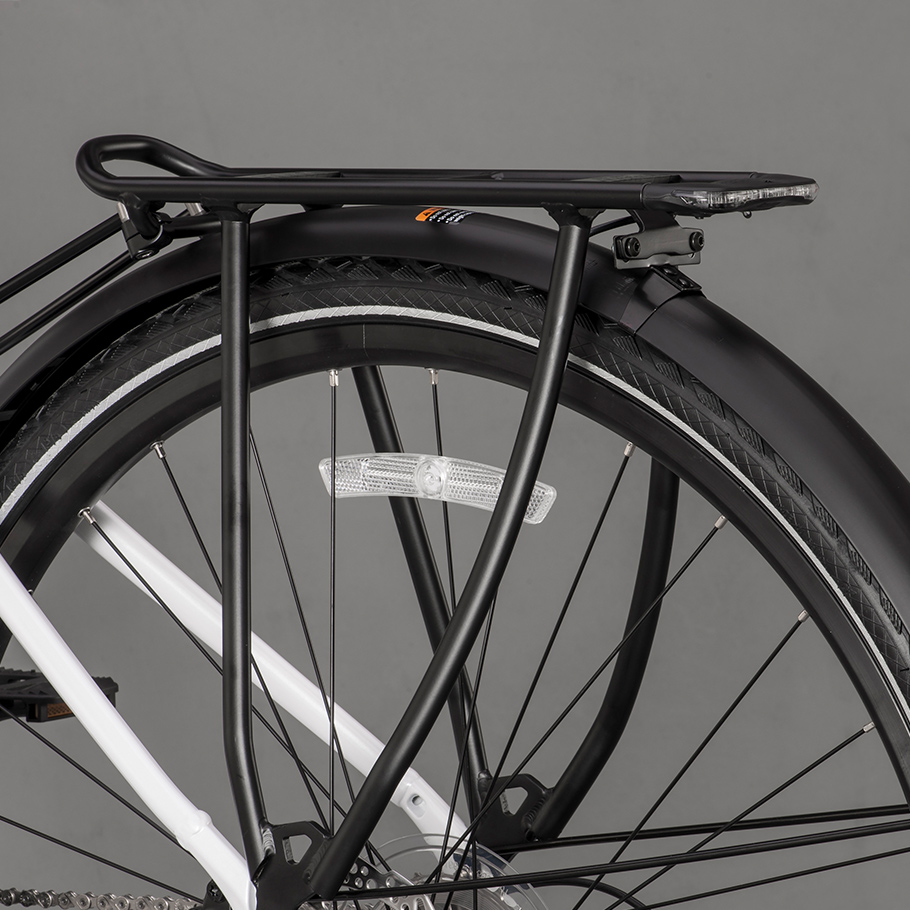

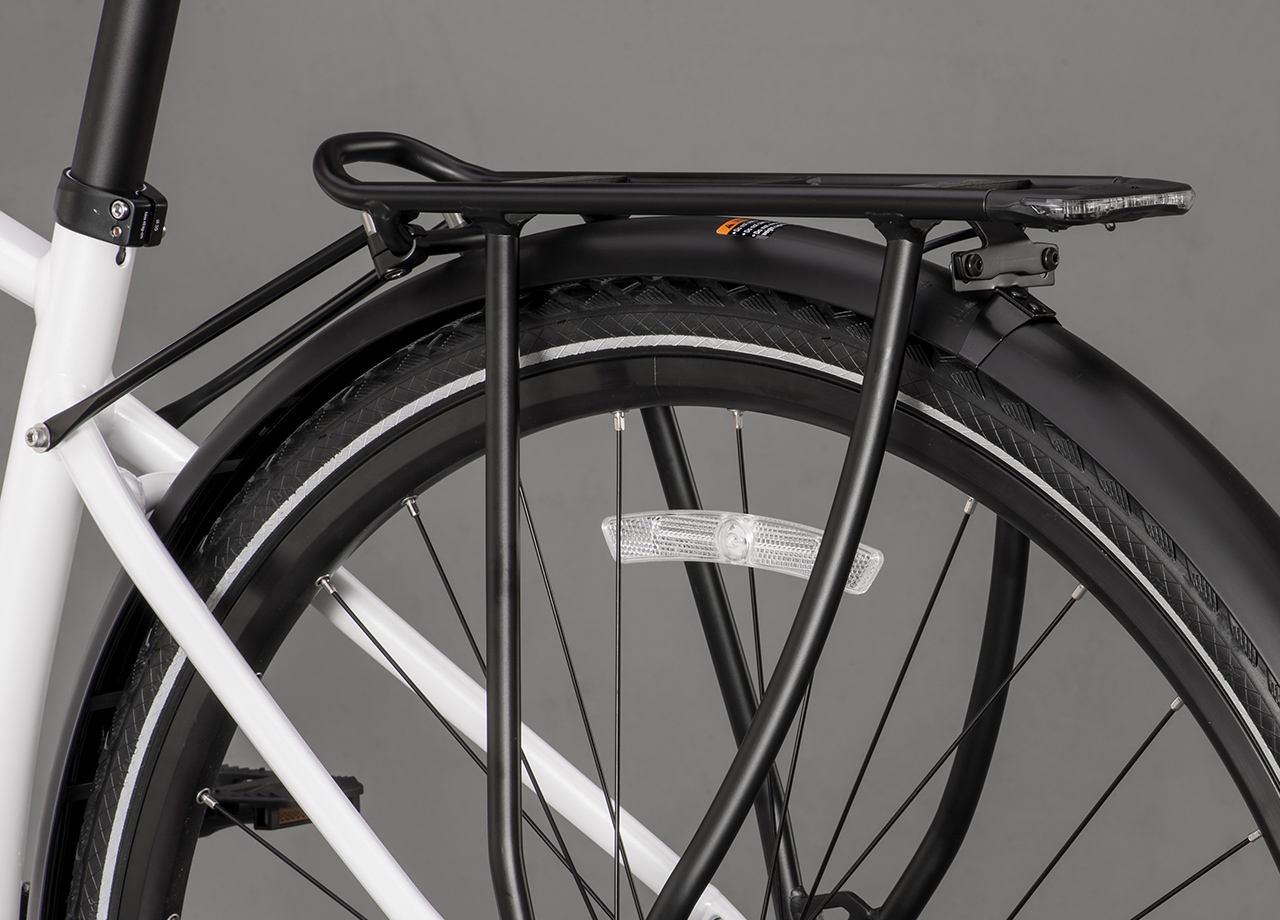

Rear Rack and Fender

Rear Rack and Fender

CrossConnect’s rear rack with integrated LED taillight can handle up to 55 lbs. of secured cargo. And the rear fender will help keep you and that cargo looking clean.

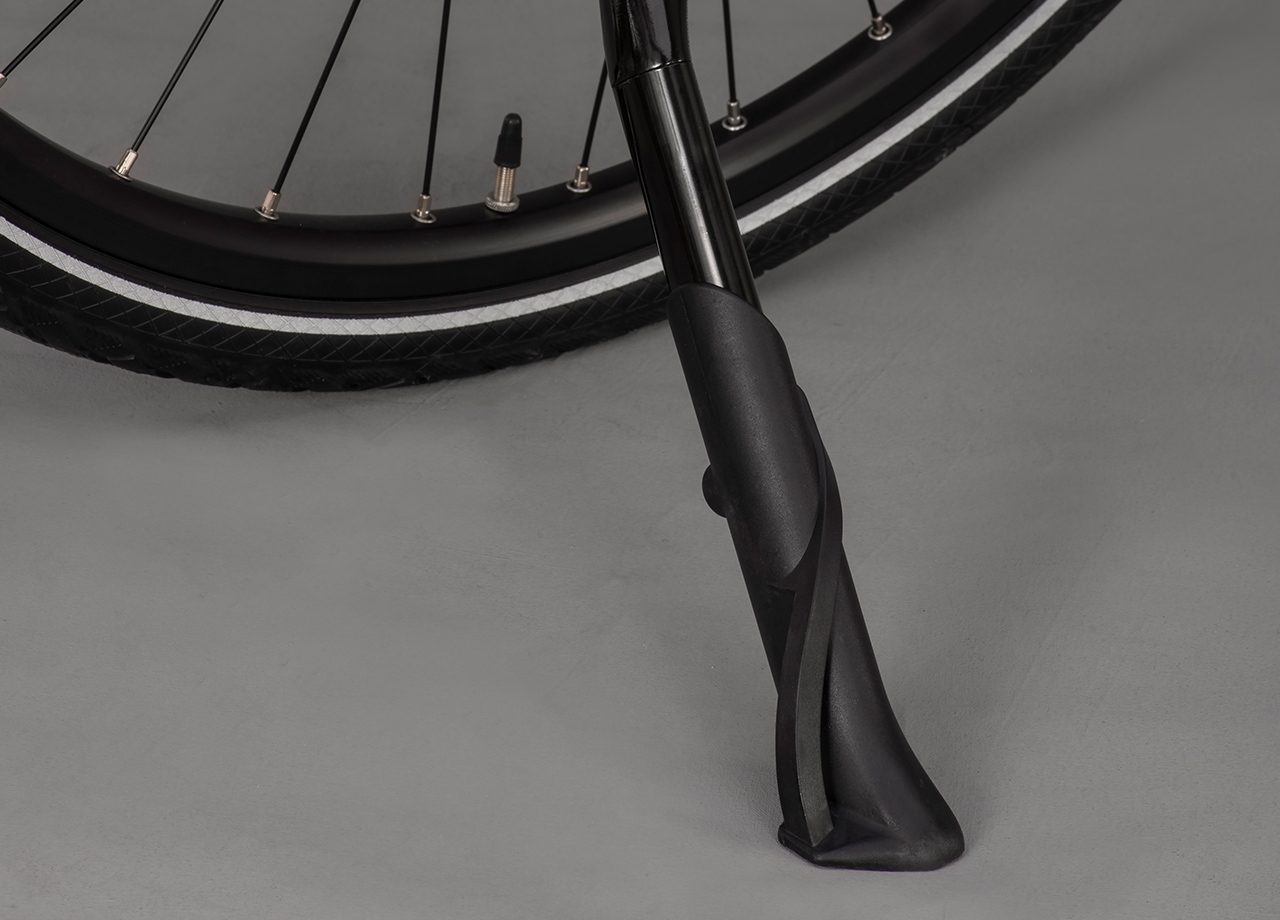

Side Stand

Side Stand

CrossConnect is loaded with features, so we didn’t forget the little things like the convenience of an integrated side stand.

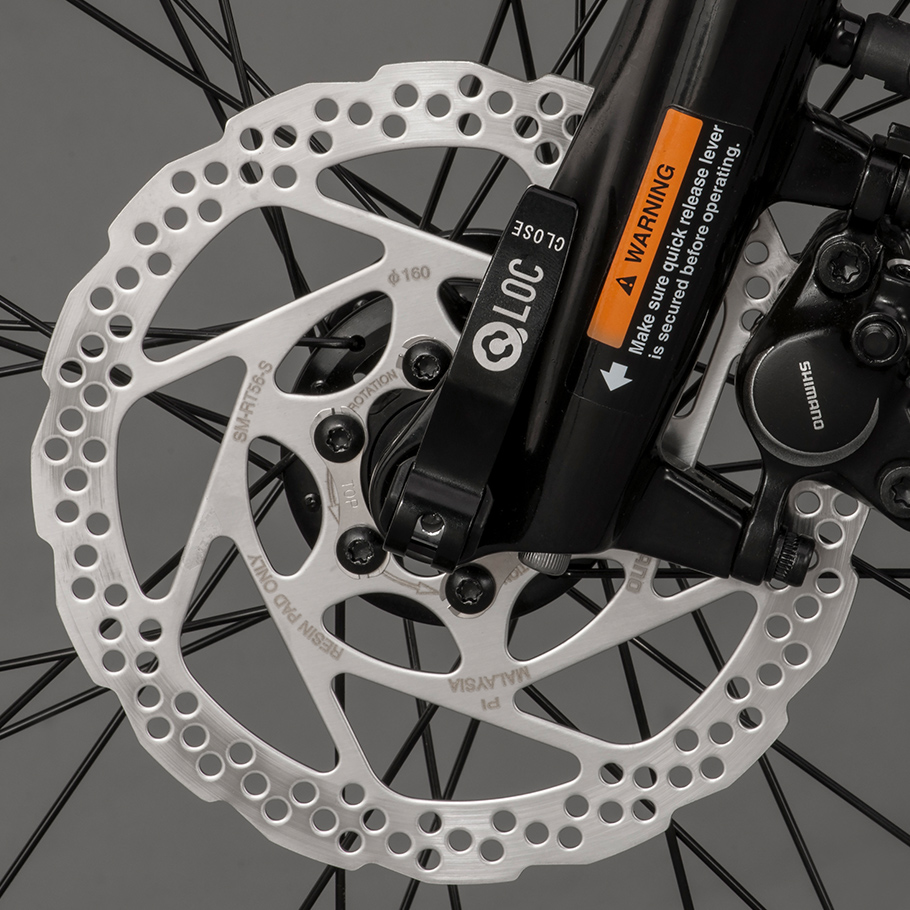

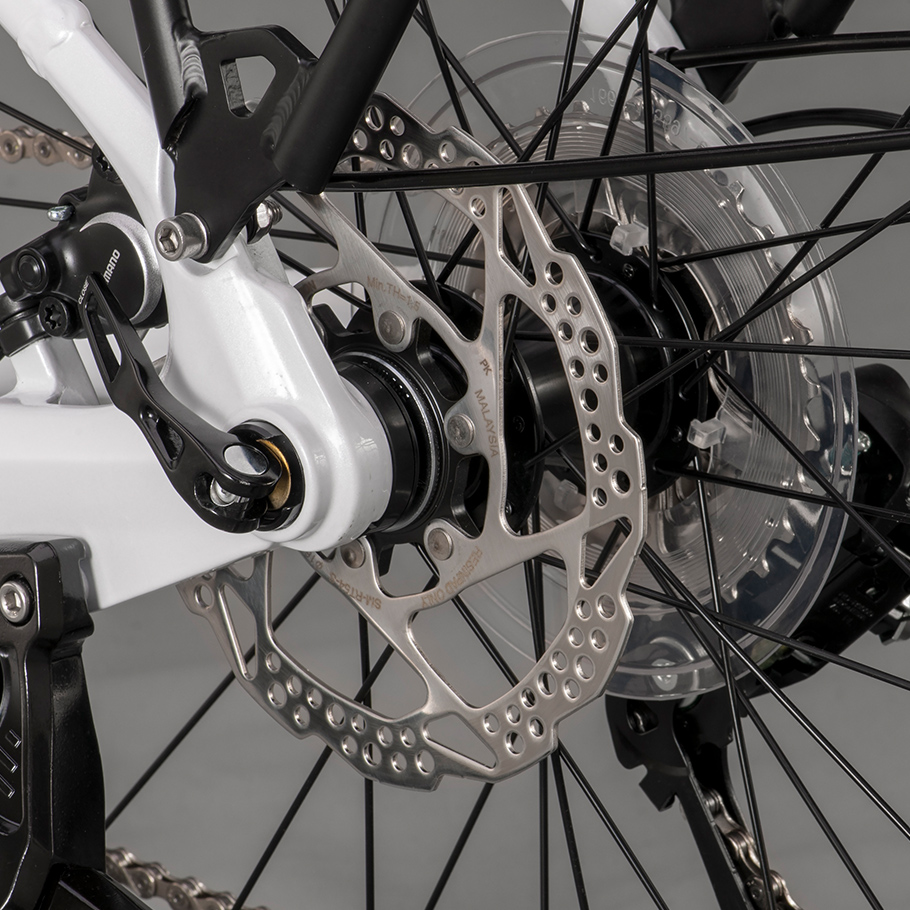

Hydraulic Disc Brakes

Hydraulic Disc Brakes

Shimano M315 hydraulic disc brakes with 160mm rotors provide confident stopping power in all conditions.

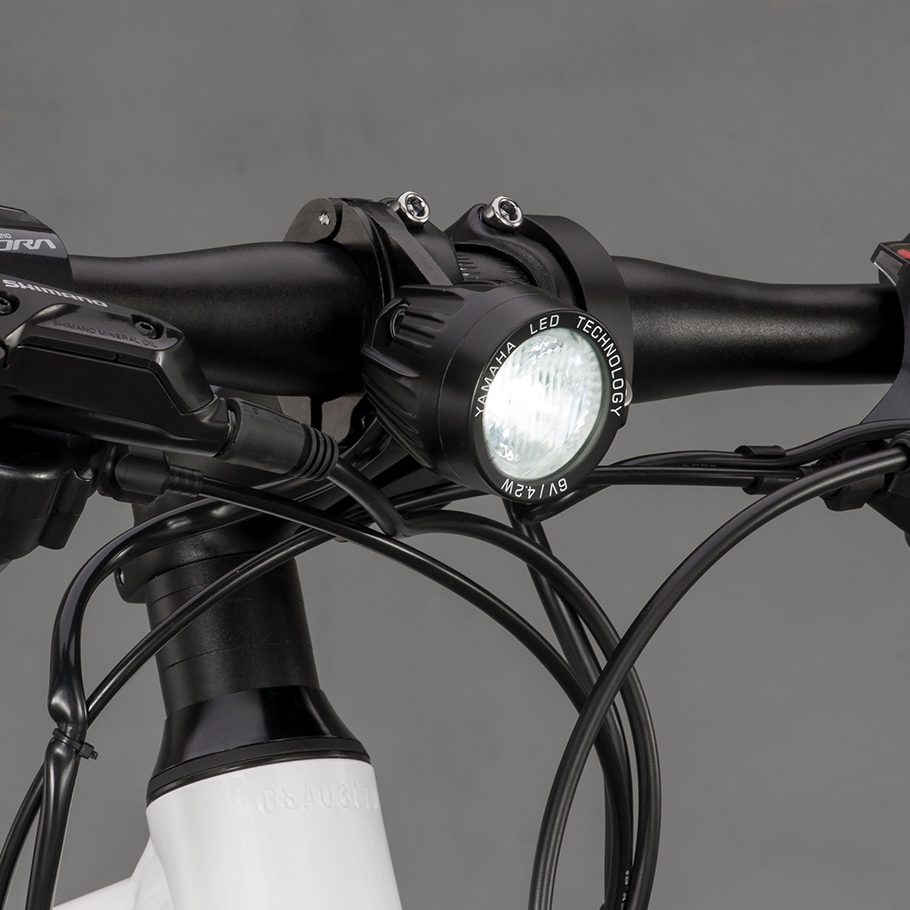

LED Headlight

LED Headlight

CrossConnect is equipped with a powerful LED headlight to help brighten your path. The headlight’s on/off button is built into CrossConnect’s multi-function display housing for easy access while riding.

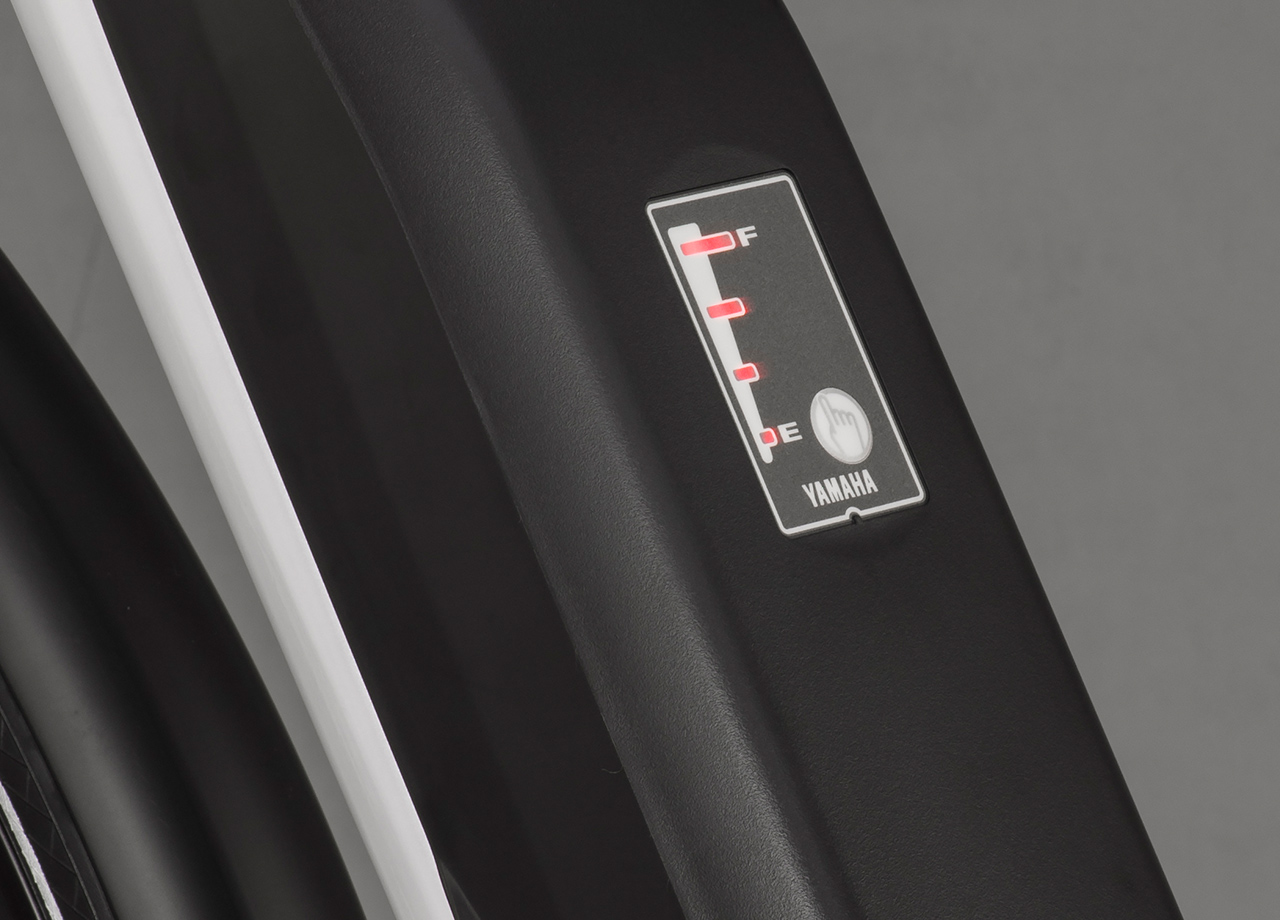

Yamaha 500Wh Battery

Yamaha 500Wh Battery

Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off CrossConnect using the Yamaha high speed charger.

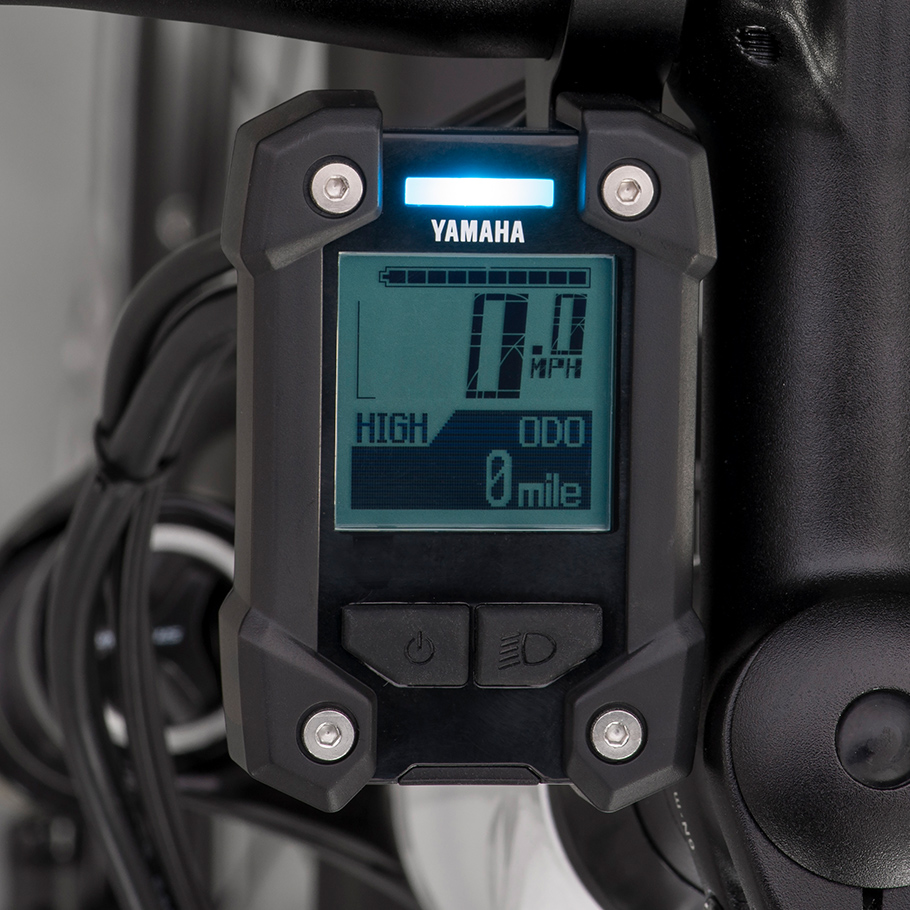

Multi-Function Display

Multi-Function Display

The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch. The color-coded LED assist level indicator is easy to see at a glance.

  • PWSeries SE Drive Unit

    Integrated into CrossConnect’s bottom bracket, the PWSeries SE drive unit provides a low center of gravity for exceptional handling. Four levels of powerful and smooth assist deliver a ride experience the feels natural and organic.

  • Suspension Fork

    CrossConnect features a Suntour NCX suspension fork to help smooth out your commute, errand or weekend ride.

  • Integrated Speed Sensor

    Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

  • Rear Rack and Fender

    CrossConnect’s rear rack with integrated LED taillight can handle up to 55 lbs. of secured cargo. And the rear fender will help keep you and that cargo looking clean.

  • Side Stand

    CrossConnect is loaded with features, so we didn’t forget the little things like the convenience of an integrated side stand.

  • Hydraulic Disc Brakes

    Shimano Acera hydraulic disc brakes with 160mm rotors provide confident stopping power in all conditions.

  • LED Headlight

    CrossConnect is equipped with a powerful LED headlight to help brighten your path. The headlight’s on/off button is built into CrossConnect’s multi-function display housing for easy access while riding.

  • Yamaha 500Wh Battery

    Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off CrossConnect using the Yamaha high speed charger.

  • Multi-Function Display

    The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch. The color-coded LED assist level indicator is easy to see at a glance.

Shop All E-Bike Accessories

Shop Now



SPECIFICATIONS



SUGGESTED USE Road, Urban Bike Path
COLORS

Storm Gray  Storm Gray

Polar White/Crimson  Polar White Crimson

Indigo/Sunset  Indigo/Sunset

Crimson/Sand  Crimson/Sand
SIZE 54cm (S), 56cm (M), 58cm (L)
MSRP $2,999
TOTAL WEIGHT 49.8lb (M)
MOTOR PWSeries SE
Center mount
Square taper spindle
Triple Sensor System with integrated speed sensor as part of rear hub
Weight: 7.71lb
Rated power: 250W (Nominal), 500W (Max)
Max torque: 70Nm
Max cadence support: 110rpm
Max speed support: 20mph
Support modes: ECO+, ECO, STANDARD, HIGH
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator

Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)

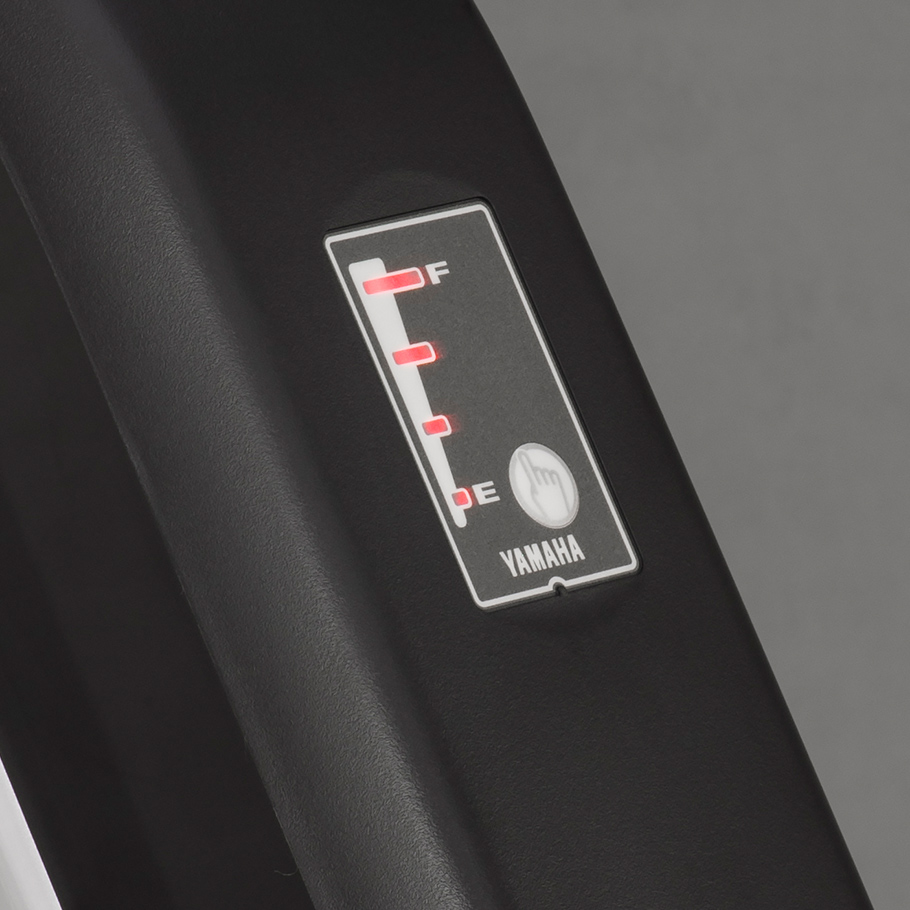

BATTERY Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
Side-exiting dock station with anti-vibration mounting plate
Weight 6.61lb
500Wh 36V
4-hour charge time
FRAME Yamaha hydroformed and butted alluminum tubing
Internal cable/housing routing
Accessory mount
3-bolt motor mount
12 x 142 rear spacing
Integrated speed sensor harness
FORK SR Suntour NCX 63mm, mechanical lock-out, 30mm stanchion, magnesium lowers, adjustable air sleeve
Alloy 1 1/8in steerer, 15mm thru-axle
Fender included
HEADSET Integrated headset with 30mm headset spacers
STEM Yamaha Alloy 4-bolt faceplate
31.8 diameter
80mm length (54cm, 56cm)
100mm length (58cm)
HANDLEBAR Alloy flat bar zero degree rise. 31.8mm diameter. 640mm width.
GRIPS/TAPE Locking ergonomic two-tone
SEATPOST/SADDLE CLAMP Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR Alloy 2-bolt 35.0mm
SADDLE Yamaha Path Plus Cro-Mo Rails
SHIFTERS Shimano 9-speed Sora trigger shifter. Gear selection window
FRONT DERAILLEUR Shimano Sora (2 x 9) Braze-on
REAR DERAILLEUR Shimano Sora RD-3000 GS 9-speed
CRANKARM Square taper
165mm (S)
170mm (M)
170mm (L)
CHAIN KMC X9e
CASSETTE Shimano 9-speed
11/30T
CHAINRING(S) 46/34T 110 BCD
BRAKES/ROTORS Shimano M315 Hydraulic Disc 160mm Front:6-bolt SM-RT 56 Rotor. Rear: Shimano SM-RT68 Centerlock Rotor
RIMS 700c. Dual channel welded pin rim
Eyelet spoke holes
Width 24.5mm (OUTSIDE) 19mm (INSIDE)
SPOKES Spokes SUS304
SPOKE NIPPLES Brass
HUBS Anodized
Front hub 15 x 100 TA, 6-bolt brake mount
Rear hub 12 x 142 Centerlock brake mount
Shimano freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBES CST E-SERIES PRO 28×1 5/8 ×1 3/8(700 x 35c) Level-6 Flat Protection Reflective Sidewall approved for eBike use
PV Tube
ACCESSORIES Yamaha keys
Yamaha battery charger
LED Headlamp
Bell
Rear rack with front/rear fenders and integrated LED tail light
WARRANTY 3-Year on Frame, Motor, Battery*
Component Manufacturer's warranty** is supported by Yamaha



Specifications are subject to change without notice

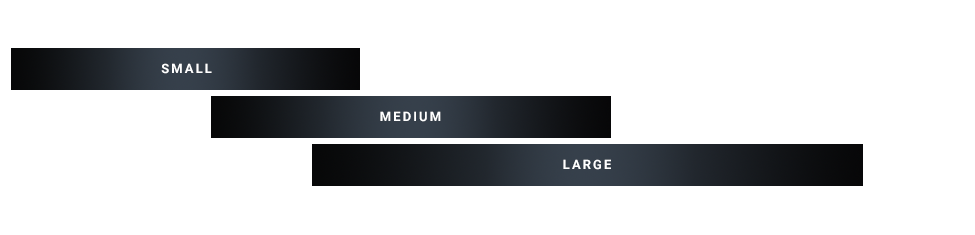

Sizing & Fit



GEOMETRY


S

A TOP TUBE (mm) 544
B REACH LENGTH (mm) 369
C STACK HEIGHT (mm) 610
D STANDOVER HEIGHT (mm) 749
E HEAD TUBE LENGTH (mm) 120
F HEAD TUBE ANGLE 70°
G SEAT TUBE ANGLE 74°
  HANDLEBAR WIDTH (mm) 640
  CRANK ARM LENGTH (mm) 165
  SEAT POST LENGTH (mm) 260
  STEM LENGTH (mm) 80
  BB DROP (mm) 61
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1067
  SEAT TUBE LENGTH (mm) 430

M

A TOP TUBE 565
B REACH LENGTH 377
C STACK HEIGHT 614
D STANDOVER HEIGHT 774
E HEAD TUBE LENGTH 120
F HEAD TUBE ANGLE 71
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 315
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1065
  SEAT TUBE LENGTH 465

L

A TOP TUBE 580
B REACH LENGTH 391
C STACK HEIGHT 618
D STANDOVER HEIGHT 797
E HEAD TUBE LENGTH 125
F HEAD TUBE ANGLE 71
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 350
  STEM LENGTH 100
  BB DROP 61
  REAR CENTER 458
  WHEELBASE 1080
  SEAT TUBE LENGTH 500
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 544 565 580
B REACH LENGTH (mm) 369 377 391
C STACK HEIGHT (mm) 610 614 618
D STANDOVER HEIGHT (mm) 749 774 797
E HEAD TUBE LENGTH (mm) 120 120 125
F HEAD TUBE ANGLE 70° 71° 71°
G SEAT TUBE ANGLE 74° 73° 73°
  HANDLEBAR WIDTH (mm) 640 640 640
  CRANK ARM LENGTH (mm) 165 170 170
  SEAT POST LENGTH (mm) 260 315 350
  STEM LENGTH (mm) 80 80 100
  BB DROP (mm) 61 61 61
  REAR CENTER (mm) 455 455 458
  WHEELBASE (mm) 1067 1065 1080
  SEAT TUBE LENGTH (mm) 430 465 500



GEOMETRY & SIZING


S

A TOP TUBE (mm) 544
B REACH LENGTH (mm) 369
C STACK HEIGHT (mm) 610
D STANDOVER HEIGHT (mm) 749
E HEAD TUBE LENGTH (mm) 120
F HEAD TUBE ANGLE 70°
G SEAT TUBE ANGLE 74°
  HANDLEBAR WIDTH (mm) 640
  CRANK ARM LENGTH (mm) 165
  SEAT POST LENGTH (mm) 260
  STEM LENGTH (mm) 80
  BB DROP (mm) 61
  REAR CENTER (mm) 455
  WHEELBASE (mm) 1067
  SEAT TUBE LENGTH (mm) 430

M

A TOP TUBE 565
B REACH LENGTH 377
C STACK HEIGHT 614
D STANDOVER HEIGHT 774
E HEAD TUBE LENGTH 120
F HEAD TUBE ANGLE 71
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 315
  STEM LENGTH 80
  BB DROP 61
  REAR CENTER 455
  WHEELBASE 1065
  SEAT TUBE LENGTH 465

L

A TOP TUBE 580
B REACH LENGTH 391
C STACK HEIGHT 618
D STANDOVER HEIGHT 797
E HEAD TUBE LENGTH 125
F HEAD TUBE ANGLE 71
G SEAT TUBE ANGLE 73
  HANDLEBAR WIDTH 640
  CRANK ARM LENGTH 170
  SEAT POST LENGTH 350
  STEM LENGTH 100
  BB DROP 61
  REAR CENTER 458
  WHEELBASE 1080
  SEAT TUBE LENGTH 500
 SMALLMEDIUMLARGE
A TOP TUBE (mm) 544 565 580
B REACH LENGTH (mm) 369 377 391
C STACK HEIGHT (mm) 610 614 618
D STANDOVER HEIGHT (mm) 749 774 797
E HEAD TUBE LENGTH (mm) 120 120 125
F HEAD TUBE ANGLE 70° 71° 71°
G SEAT TUBE ANGLE 74° 73° 73°
  HANDLEBAR WIDTH (mm) 640 640 640
  CRANK ARM LENGTH (mm) 165 170 170
  SEAT POST LENGTH (mm) 260 315 350
  STEM LENGTH (mm) 80 80 100
  BB DROP (mm) 61 61 61
  REAR CENTER (mm) 455 455 458
  WHEELBASE (mm) 1067 1065 1080
  SEAT TUBE LENGTH (mm) 430 465 500
