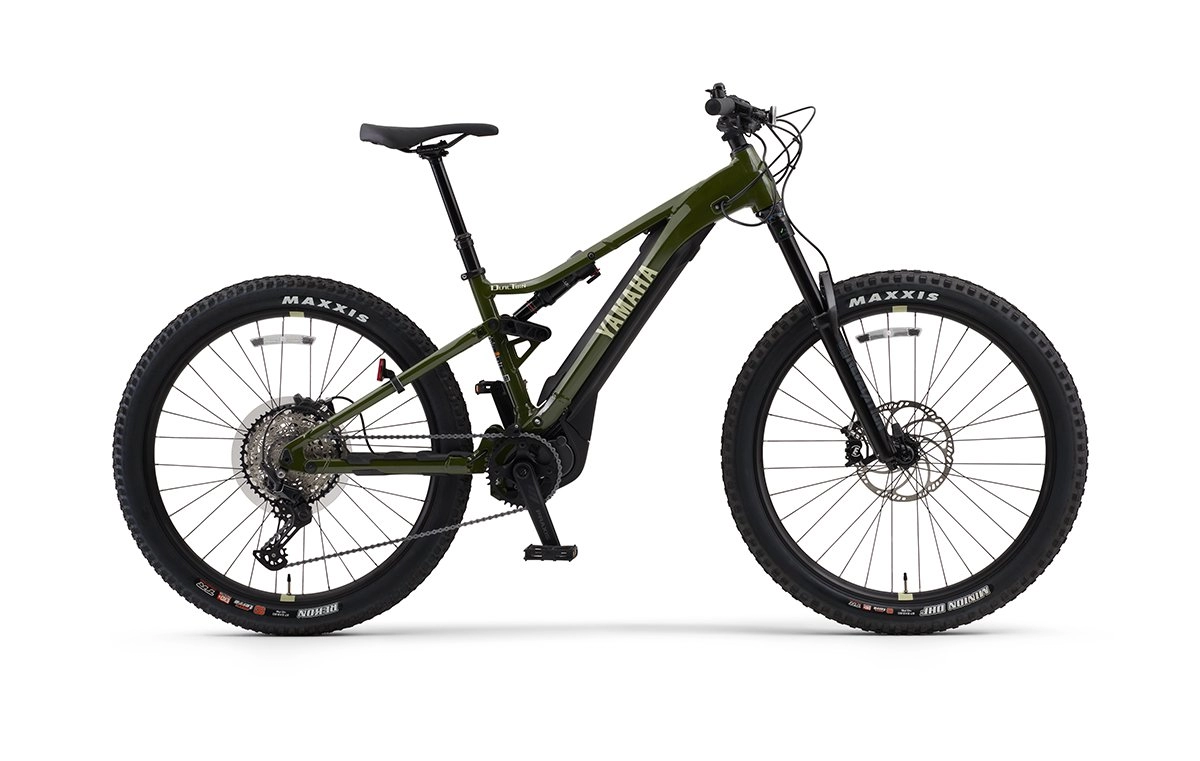

YDX-MORO 05 Yamaha Power Assist Electric Bicycles

FEATURES

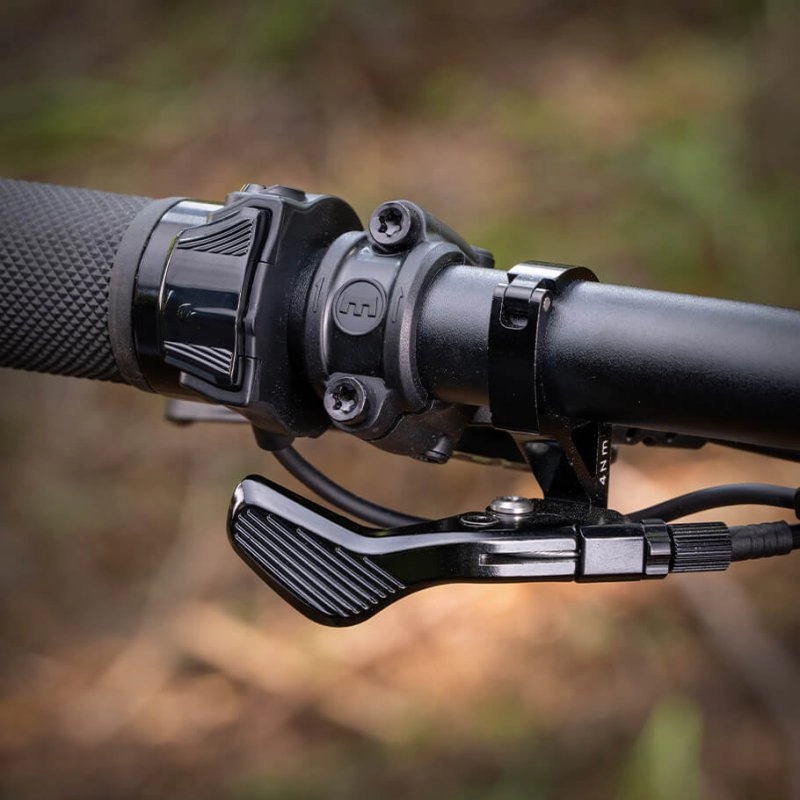

Do you see it?

All-New YAMAHA Interface X control switch is a minimalist and ergonomic design which easily accesses the 5 support modes, walk assist and automatic support modes all in a clean handlebar aesthetic.

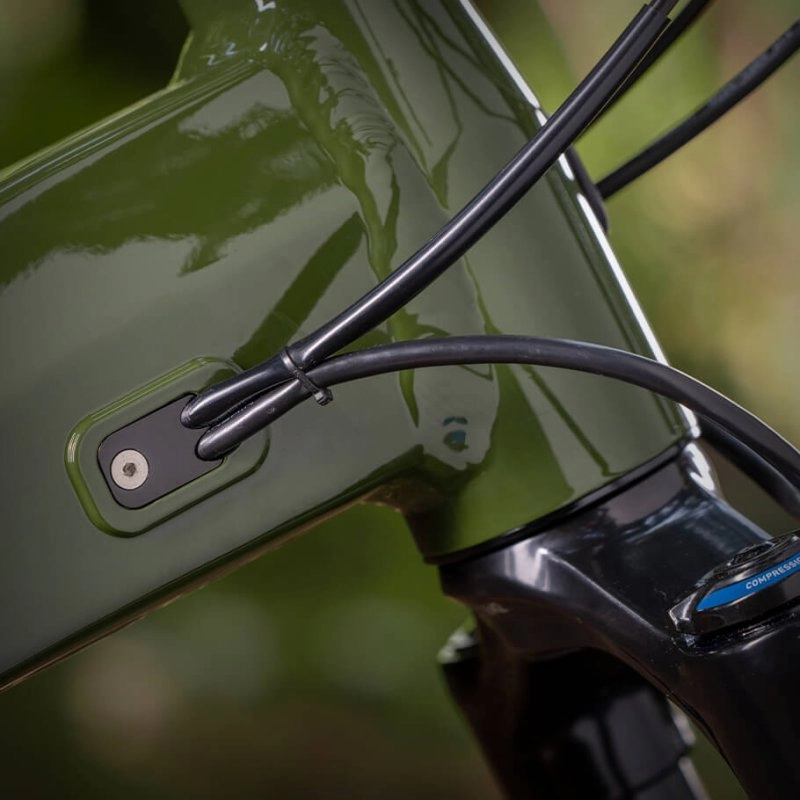

Clean lines for those dirty trails

Internal Cables and Housing minimize exposure to harsh riding conditions and help maximize time between service schedules.

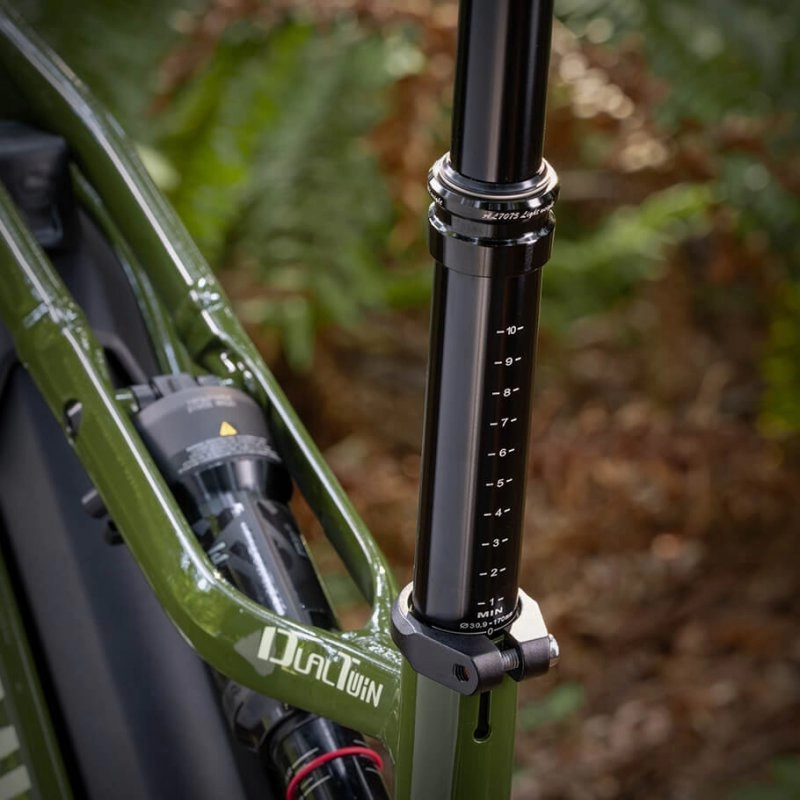

Like it's hot

More internal technology than your over-priced ergonomic office chair, the travel distance on this dropper post was specially selected for every frame size to match rider size with the trail's demands.

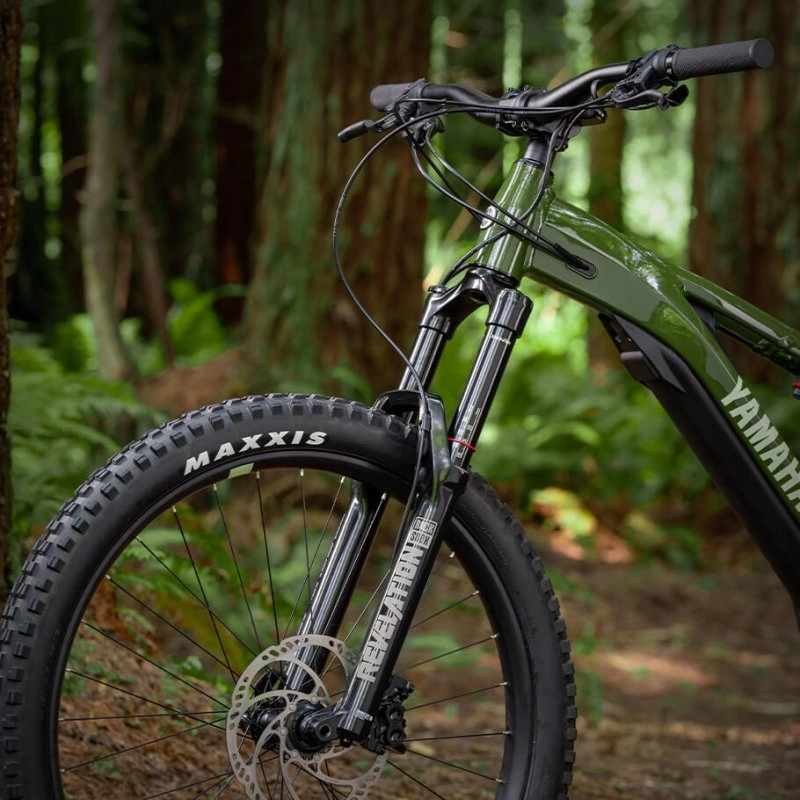

Bump osmosis technology

The long-travel and ultra-strong 160mm fork absorbs bumps like a sponge to increase riding confidence even on the most challenging trail terrain.

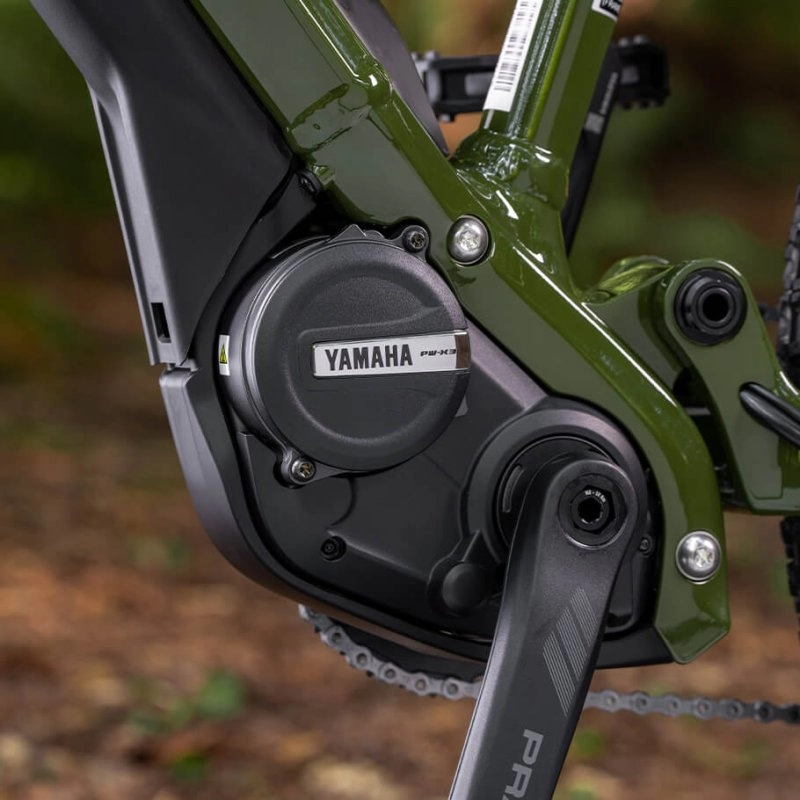

ALL-NEW YAMAHA PW-X3

Everything you would expect from a Yamaha. Massive power, lip-snarling responsiveness, and impressive efficiency all in a lighter and smaller package now with Garmin Edge 530, Edge 830 and Edge 1030 compatibility.

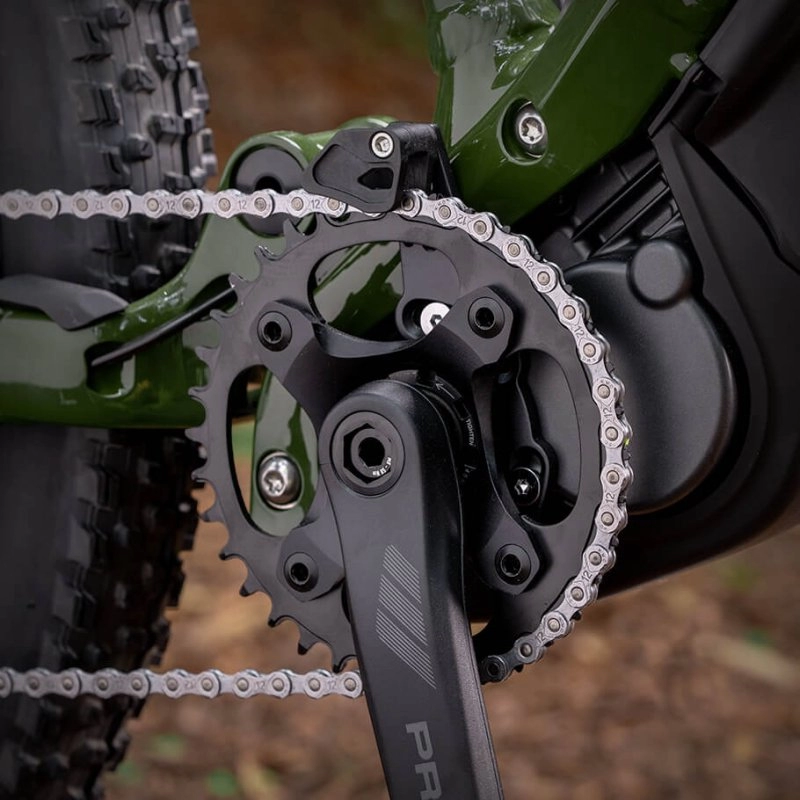

A little guidance never hurts

Directly bolted to the PW-X3 drive unit, this ISCG05 chain guide will help keep the chain in place even under the gnarliest conditions.

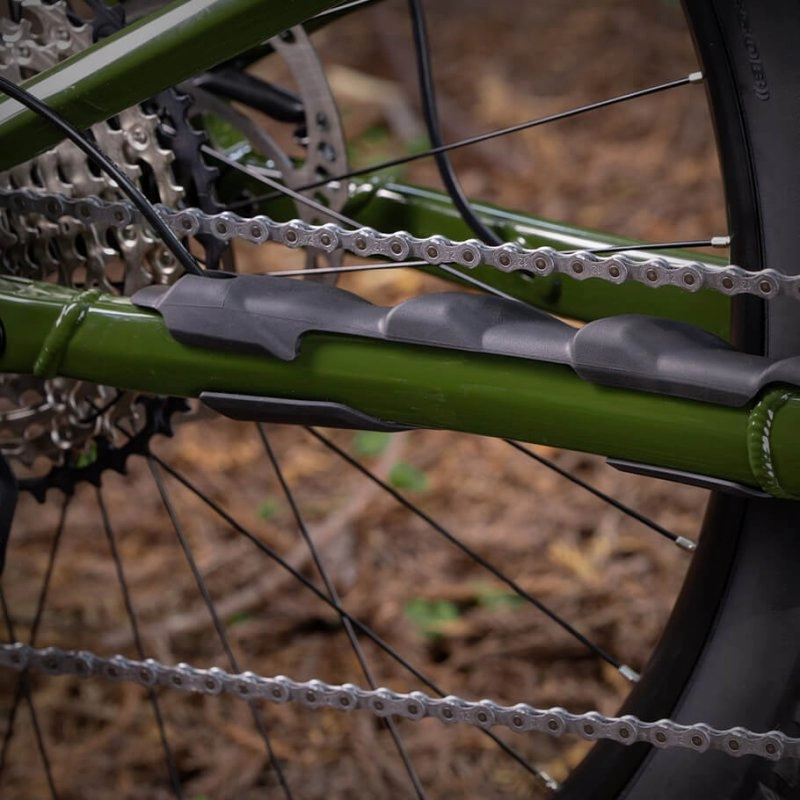

A thing of beauty is worth protecting

This burley and robust chainstay protector is proprietary design by YAMAHA engineers to protect the frame from chains lapping chips to your beautiful paint job.

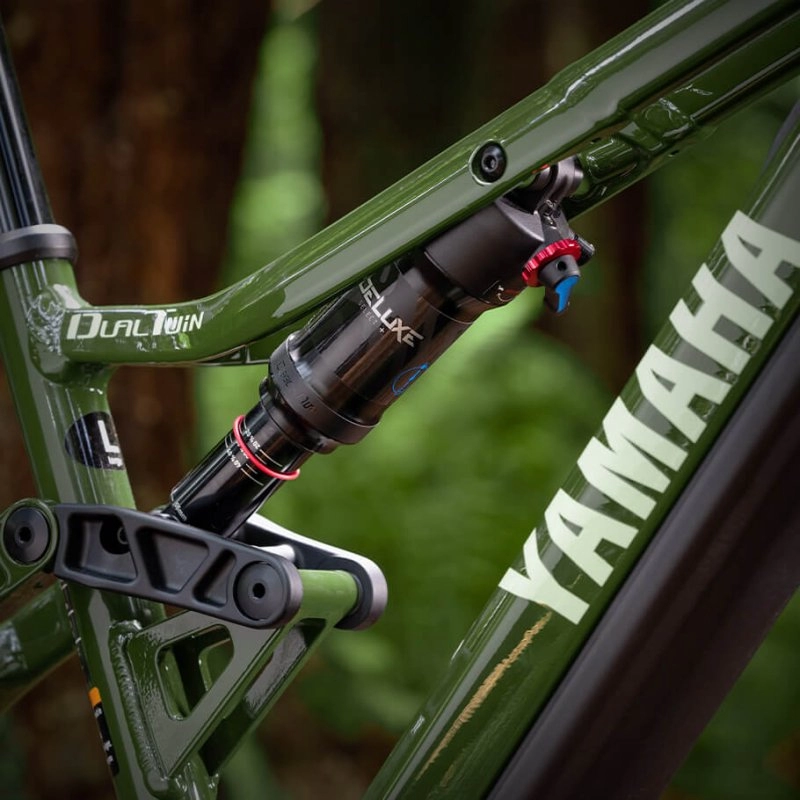

Patented Dual Twin Frame

The combined hydroforming and forging construction techniques created in Yamaha's patented Dual Twin frame protects components and delivers the ultimate in handing and control.

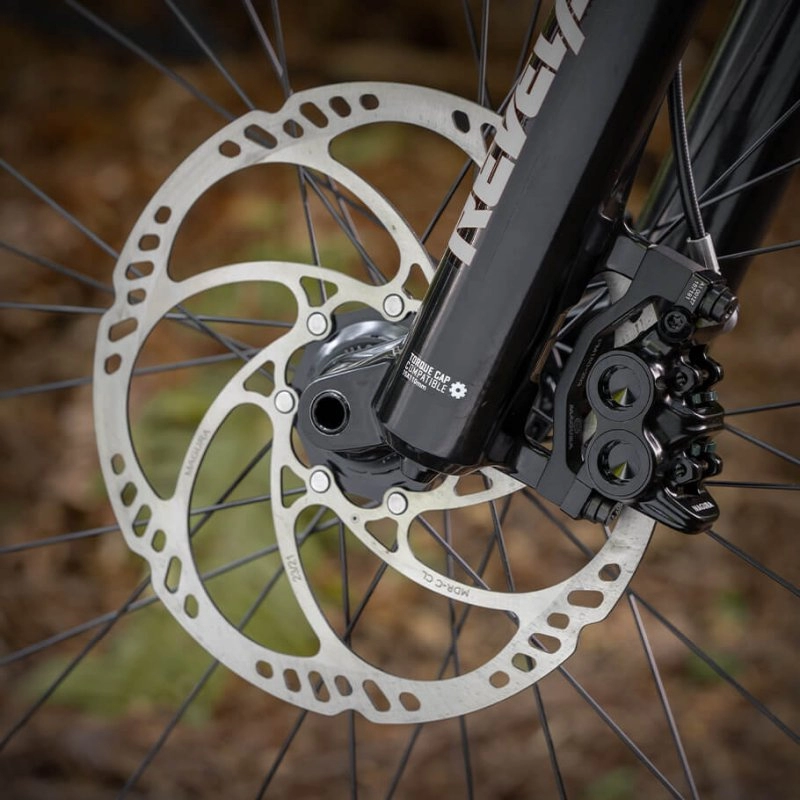

Stop us at anytime

With powerful two-finger brake levers and one-piece caliper construction, your bike might be two-tired but your forearms won't be.

YDX-MORO 05 SPECIFICATIONS

Download Specs/Geometry PDF

GENERAL

SUGGESTED USE

• All Mountain Class-1 Ebike Off-Road Trail Use

COLORS

• Forest Green Forest Green

SIZE

• Small, Medium, Large

MSRP

• 5799

TOTAL WEIGHT

• 51.1 lb (Medium)

DRIVE

MOTOR

• YAMAHA PW-X3 Class 1 Labeled Centermount ISIS SplinedCrankarm Spindle YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes

• Rate power: 250W (nominal), 500W(maximum)

• Max torque: 85Nm

• Max speed support: 20MPH

• Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist

CONTROL SWITCH AND MULTI-FUNCTION COMPUTER

• YAMAHA Interface X Control functions include: 3-color LED support-mode level light indicator, (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator) and Walk Assist mode (Purple LED indicator), Bluetooth™ connectivity, 3-color L

BATTERY

• Yamaha 500Wh with Charge-life indicator and Self-diagnosis display

• Anti-Vibration Mounting Plate

• Weight: 6.61 lbs

• 500Wh 36V

• Re-charge time: 1-hour 80%, 4-hour 100%

FRAME & COMPONENTS

FRAME

• YAMAHA Dual Twin Frame

• Tapered Headtube

• Internal cable/housing routing

• 2-bolt drive unit mount

• 12x148 rear axle spacing

• Integrated YAMAHA speed sensor harness

FORK

• ROCKSHOX REVELATION RC

• 160mm TRAVEL

• 35mm Stanchion eMTB rated Motion Control damping with low-speed compression adjustment DebonAir air spring

REAR SHOCK

• ROCKSHOX DELUXE SELECT +

• 150mm travel

• 210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment

• 2-position compression adjustment

HEADSET

• Integrated 1 1/8"

STEM

• Alloy 4-both faceplate

• 35.0 diameter

• 40mm length

HANDLEBARS

• Alloy

• 35.0 diameter

• 780mm width

• 30mm rise

GRIPS

• VELO Single Ring Locking

SEATPOST/SADDLE CLAMP

• TRANS-X 30.9 dia.

• TRAVEL (S) 125mm (M) 150mm (L) 170mm

SEATPOST COLLAR

• Single-bolt 35.0mm

SADDLE

• YAMAHA anti-slip finish with hand rail tail

RIMS

• YAMAHA 27.5+ Alloy

• Tubeless tape installed

• Width: 46mm (outside) 40mm (inside)

SPOKES

• 14g alloy SUS304

HUBS

• Anodized Alloy

• Centerlock brake mount

• 15x110mm BOOST+ (front)

• 12x148mm MicroSpline freehub Quick Release Thru Axle Type

TIRES/TUBES

• MAXXIS 27.5X2.6

• (F) MINION DHF (R) REKON

GROUP SET

AXLES

• MAXLE 15MM X 110MM BOOST THRU AXLE

SHIFTERS

• Shimano DEORE SL-M6100-R

FRONT DERAILLEUR

• N/A

REAR DERAILLEUR

• Shimano DEORE RD-M6100-SGS

CRANKARM

• PRAXIS E-CRANK ARM

• 165mm LENGTH

CHAIN

• KMC eTURBO EPT 122 links

CASSETTE

• Shimano SLX CS-M7100-12

• 12-spd

• (10-51T)

CHAINRINGS

• PRAXIS 36T

BRAKES/ROTORS

• MAGURA MT30

• (F) 4-PISTON (R) 2-PISTON

• 203MM CENTER LOCK ROTOR (F/R)

• Two-finger lever

OTHER

ACCESSORIES

• Protective motor and battery covers

• ISCG05 chainguuide

• Safety bell VP Acrylic pedals

• (No Keys)

WARRANTY

• 5-Year on Frame, Motor, Battery*

• Component Manufacturer’s warranty** is supported by YAMAHA

Specifications are subject to change without notice.

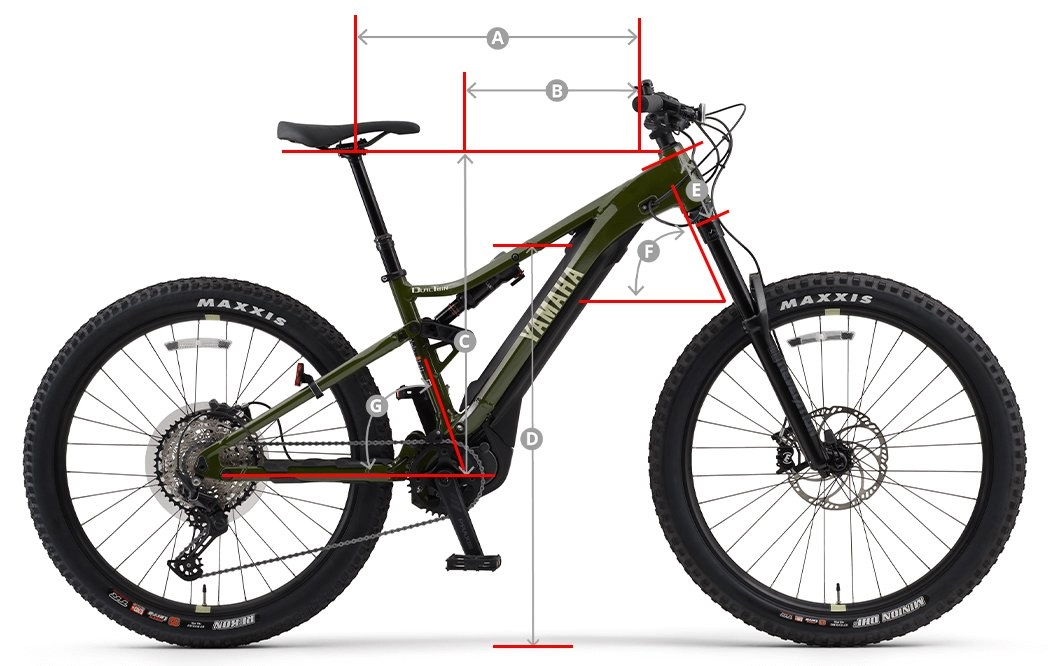

A	TOP TUBE (mm)	572
B	REACH LENGTH (mm)	393
C	STACK HEIGHT (mm)	616
D	STANDOVER HEIGHT (mm)	741
E	HEAD TUBE LENGTH (mm)	110
F	HEAD TUBE ANGLE	66.3°
G	SEAT TUBE ANGLE	70.3°

A	TOP TUBE (mm)	619
B	REACH LENGTH (mm)	437
C	STACK HEIGHT (mm)	625
D	STANDOVER HEIGHT (mm)	751
E	HEAD TUBE LENGTH (mm)	120
F	HEAD TUBE ANGLE	66.3°
G	SEAT TUBE ANGLE	70.3°

A	TOP TUBE (mm)	666
B	REACH LENGTH (mm)	482
C	STACK HEIGHT (mm)	629
D	STANDOVER HEIGHT (mm)	759
E	HEAD TUBE LENGTH (mm)	125
F	HEAD TUBE ANGLE	66.3°
G	SEAT TUBE ANGLE	70.3°

PRODUCT

Prices Start at

$5,799*

TRADITION AND RELIABILITY

20 mph

MAX SPEED

85Nm

TORQUE

500Wh
