With suspension that is optimized to evenly spread grip between the front and rear of the bike for greater traction on the trail and buttery smooth feel when riding over anything that trails can throw at you, all-mountain has become every-mountain.

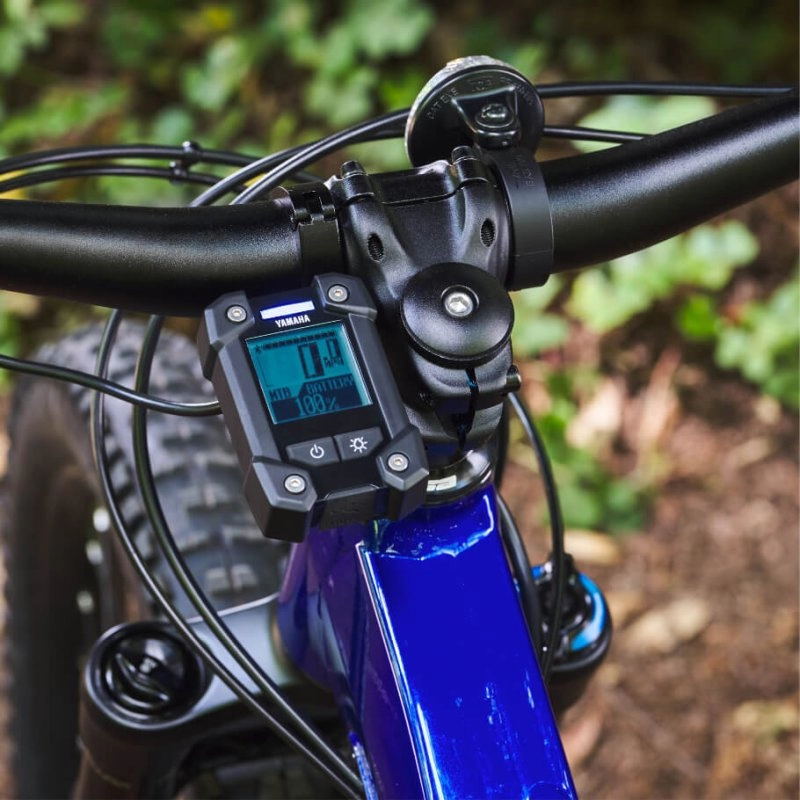

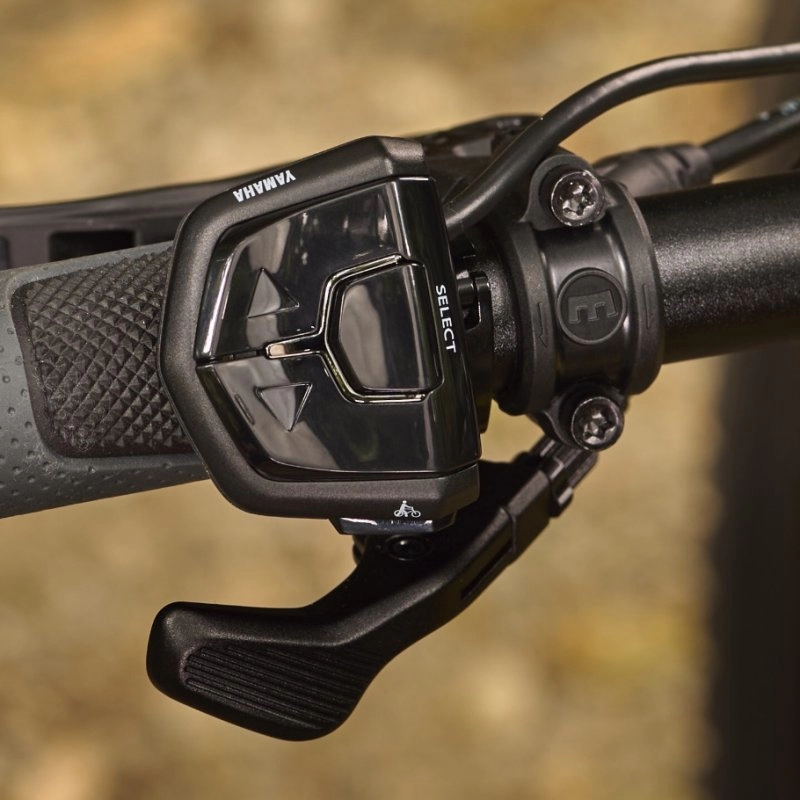

Our sleek and newly designed PW-X2 control switch maintains the ergonomic and tactile feel found on our other bicycles while adding a push assist feature button.

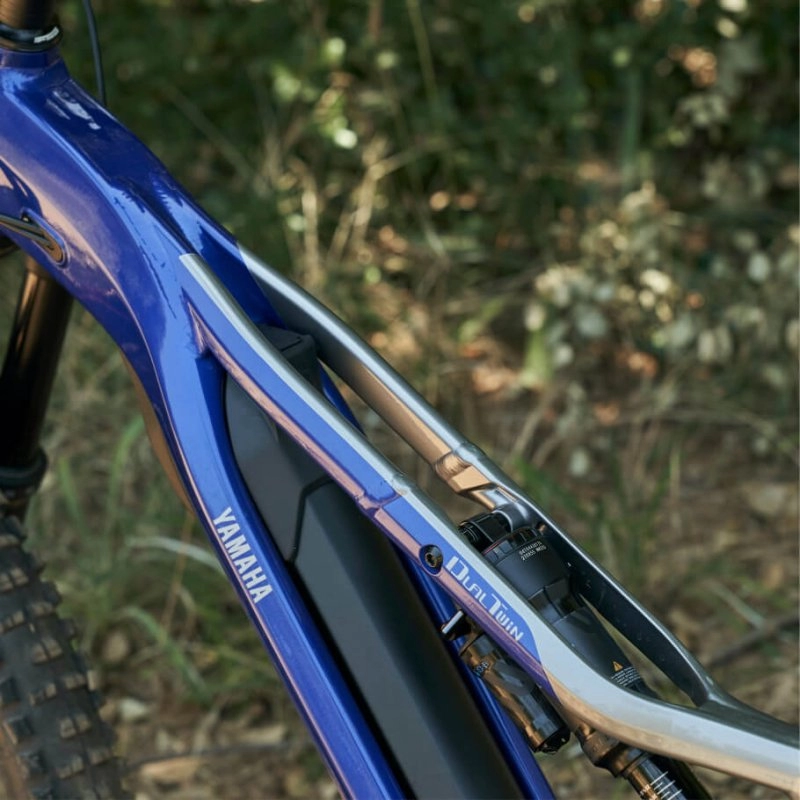

Combining hydroforming and forging techniques, our patented Dual Twin™ frame design provides precise handling and surrounds both rear shock and battery resulting in security, protection and a low center of gravity full suspension frame.
Our NEW MTB mode offers a direct feeling assist suited for pedaling through tight corners and riding technical lines while AUTO support mode automatically switches between ECO, STD, and HIGH to provide optimal assist according to ride conditions.

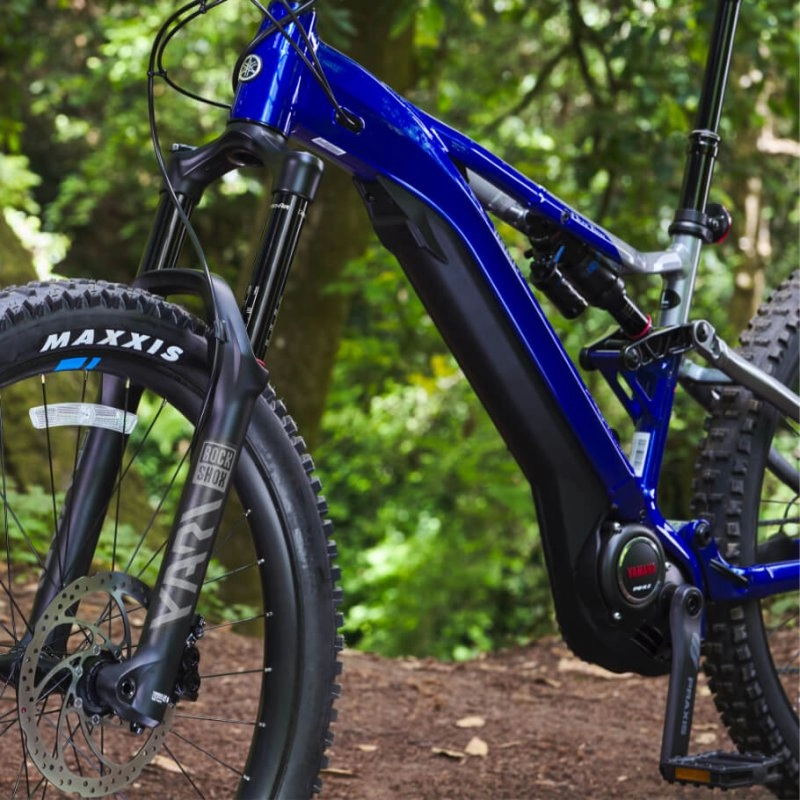

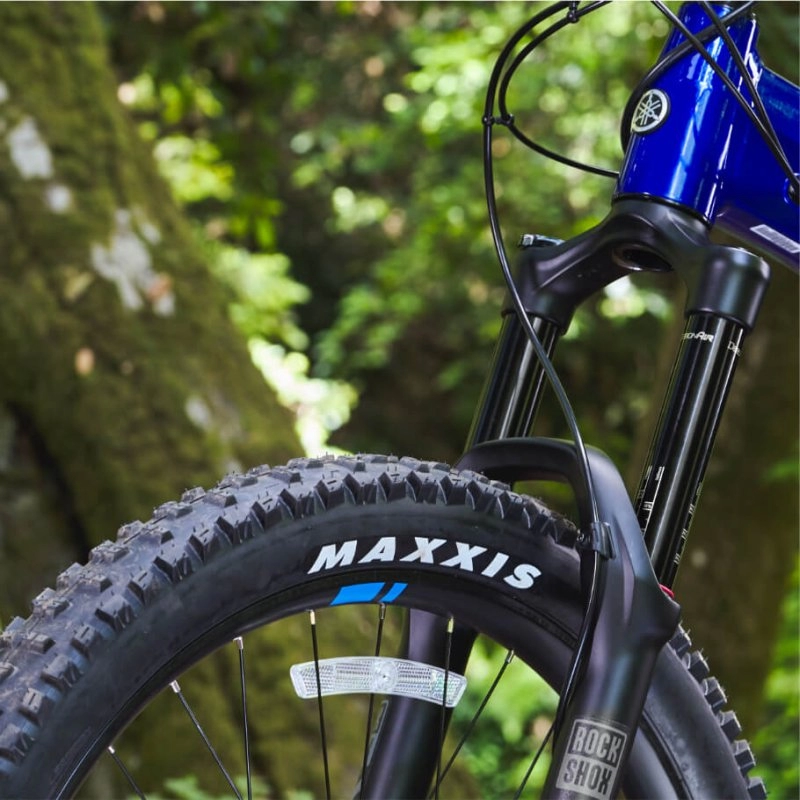

Easily tuned for a custom, buttery smooth feel, the 160mm travel fork maintains a higher ride height for ultimate confidence when riding steep and rough terrain.
Protected in the lower cage of the Dual Twin™ frame is our 500wh battery protected by our subframe battery jacket.

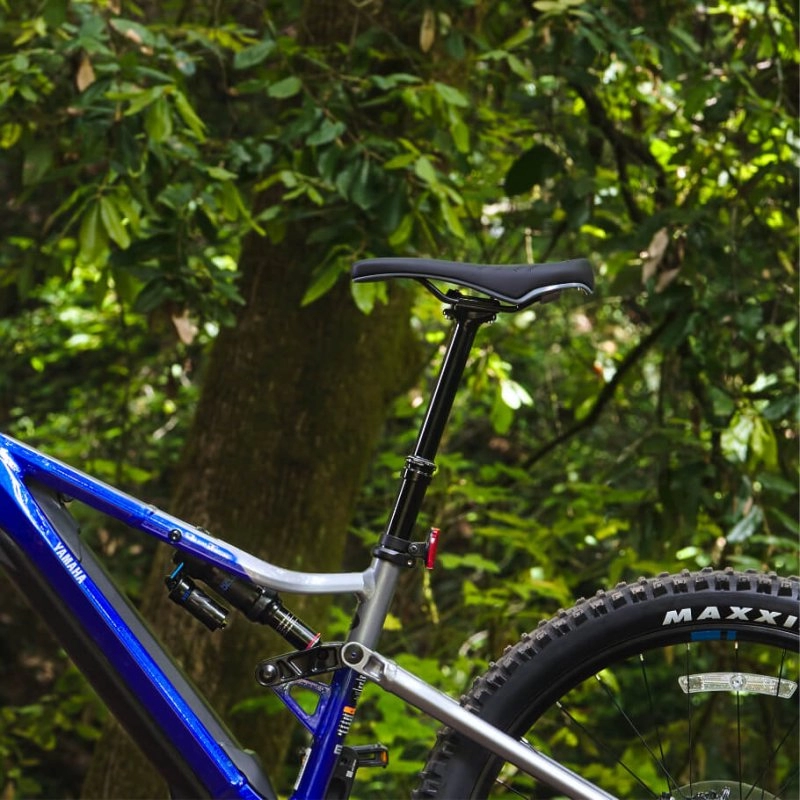

Push lever control allows you to adjust your saddle height from your handlebar. A quick push of the lever allows you to lower your center of gravity so you can descend, corner, and jump more easily.

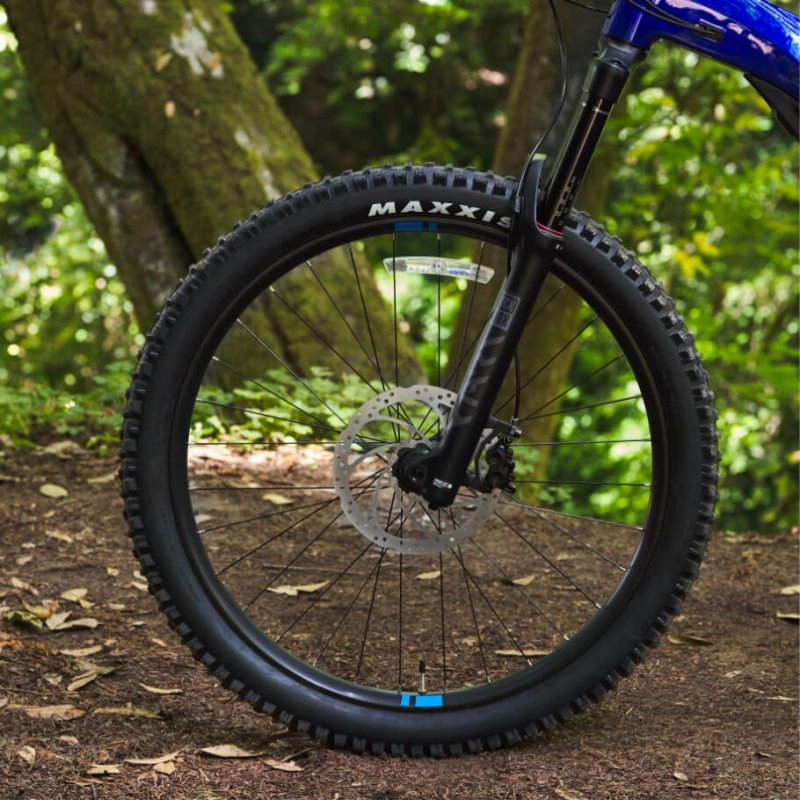

With internal rim width of 40mm, our Yamaha-designed 27.5+ alloy wheelset is built with Boost hub spacing for a more direct chainline in the rear wheel and wider hub flange for increased spoke strength to the rim.

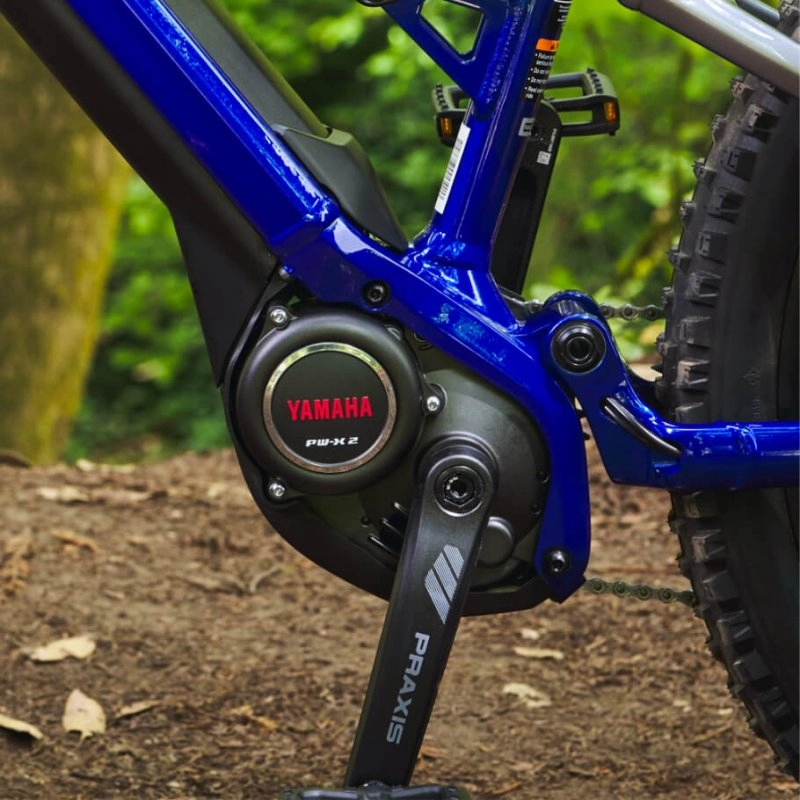

Now with an angle sensor for use in our All-New Auto support mode, new helical driven gears for less noise, and brand new programming to support an increase cadence support (now up to 170rpm) and the added push assist feature.

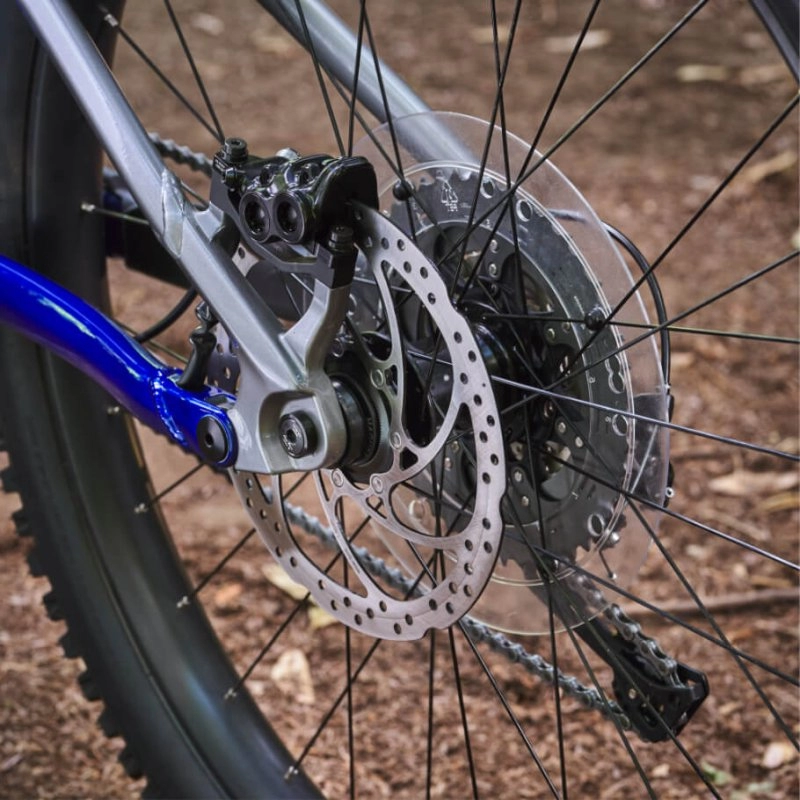

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.
SUGGESTED USE
• All-Mountain
COLORS
• Podium Blue/Nickel Podium Blue / Nickel

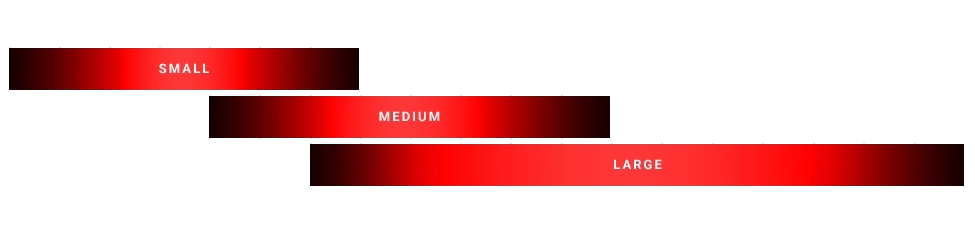

SIZE
• Small, Medium, Large
MSRP
• 5499
TOTAL WEIGHT
• 53.1lb (Medium)
MOTOR
• PW-X2
• Center mount
• ISIS splined spindle
• Quad Sensor System with integrated speed sensor as part of rear hub
• Weight: 6.83lb
• Rated power: 250W (Nominal), 500W (Max)
• Max torque: 80Nm
• Max cadence support: 170rpm
• Max speed support: 20mph
• Support modes: ECO, STD, HIGH, EXPW, AUTOMATIC (ECO-STD-HIGH)
• Protective motor cover included
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER
• Computer control functions include: (5) Power-level control switch, plus AUTOMATIC support mode, control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time
• Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
BATTERY
• Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
• Multilocation with anti-vibration mounting plate
• Weight 6.61lb
• 500Wh 36V
• 4-hour charge time
FRAME
• Yamaha Dual Twin Frame
• Tapered headtube
• Internal cable/housing routing
• 2-bolt motor mount
• 12 x 148 rear spacing
• Integrated speed sensor harness
FORK
• RockShox YARI RC Boost 160mm
• Tapered aluminum steerer, 1 1/8in - 1 1/2in
REAR SHOCK
• RockShox Super Deluxe Select +
• 210mm/55mm
• 150mm travel
HEADSET
• Integrated tapered headset with headset spacers
STEM
• Yamaha Alloy 4-bolt faceplate
• 35.0 diameter
• 40mm length
HANDLEBAR
• Alloy 30mm riser bar
• 35.0mm diameter
• 780mm width
GRIPS/TAPE
• Locking Dual Core
SEATPOST/SADDLE CLAMP
• Alloy 30.9mm dropper post (S/M) 125mm travel, (L) 150mm travel
SEATPOST COLLAR
• Single-bolt 35.0mm
SADDLE
• Yamaha Anti-slip finish with hand rail tail
RIMS
• Yamaha 27.5+ Alloy
• Tubeless tape installed
• Width: 46mm (OUTSIDE) 40mm (INSIDE)
SPOKES
• Spokes SUS304
SPOKE NIPPLES
• Brass
HUBS
• Anodized
• Centerlock brake mount
• 15X110 Boost, rear hub 12 x 148 Hyperglide freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBES
• Maxxis High Roller II 27.5 x 2.8in
• Tubeless compatible rim
• Tubeless compatible rim strip
SHIFTERS
• Shimano XT
• 11-speed
FRONT DERAILLEUR
• N/A
REAR DERAILLEUR
• Shimano XT Long-Cage
CRANKARM
• PRAXIS ISIS
• 170mm
CHAIN
• KMC e11 Turbo EPT
CASSETTE
• Shimano XT
• 11-speed
• 11/46T
CHAINRING(S)
• Praxis Wave 36T 104 BCD
BRAKES/ROTORS
• Magura MT30 Front/Rear: 4-piston
• 203mm Storm CL Rotors
ACCESSORIES
• Bell
• (No keys)
WARRANTY
• 5-Year on Frame, Motor, Battery*
• Component Manufacturers warranty** is supported by Yamaha
Specifications are subject to change without notice.

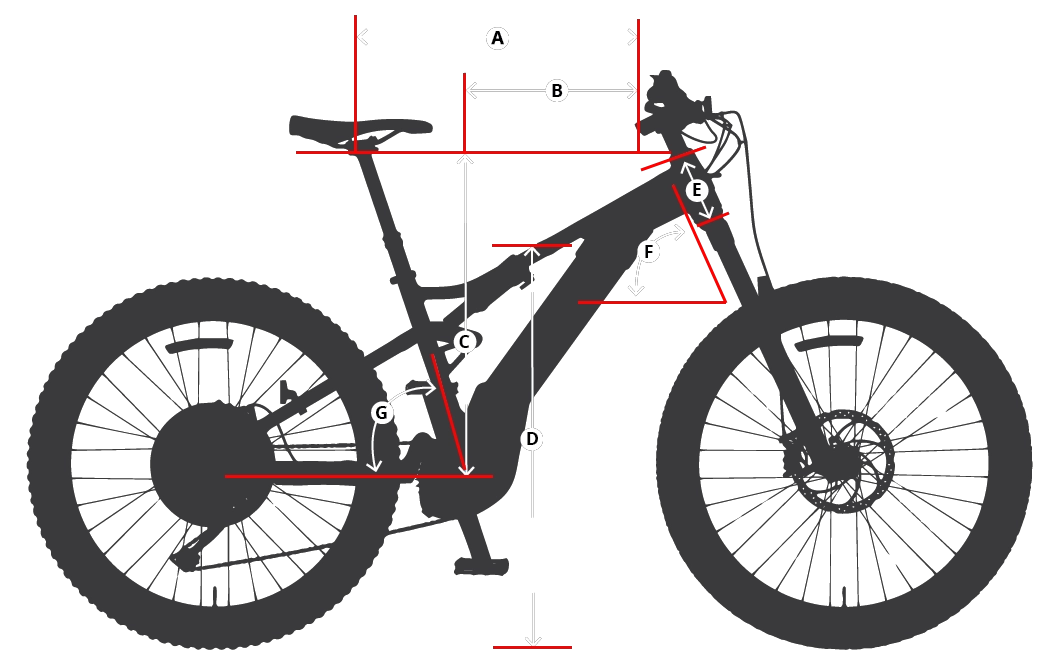

| A | TOP TUBE (mm) | 572 |
| B | REACH LENGTH (mm) | 388 |
| C | STACK HEIGHT (mm) | 611 |
| D | STANDOVER HEIGHT (mm) | 746 |
| E | HEAD TUBE LENGTH (mm) | 111 |
| F | HEAD TUBE ANGLE | 66.3° |
| G | SEAT TUBE ANGLE | 70.3° |
| HANDLEBAR WIDTH (mm) | 780 | |
| CRANK ARM LENGTH (mm) | 170 | |
| SEAT POST LENGTH (mm) | 412 | |
| STEM LENGTH (mm) | 40 | |
| BB DROP (mm) | 19 | |
| REAR CENTER (mm) | 469 | |
| WHEELBASE (mm) | 1157 | |
| SEAT TUBE LENGTH (mm) | 390 |
| A | TOP TUBE (mm) | 619 |
| B | REACH LENGTH (mm) | 432 |
| C | STACK HEIGHT (mm) | 619 |
| D | STANDOVER HEIGHT (mm) | 755 |
| E | HEAD TUBE LENGTH (mm) | 120 |
| F | HEAD TUBE ANGLE | 66.3° |
| G | SEAT TUBE ANGLE | 70.3° |
| HANDLEBAR WIDTH (mm) | 780 | |
| CRANK ARM LENGTH (mm) | 170 | |
| SEAT POST LENGTH (mm) | 459 | |
| STEM LENGTH (mm) | 40 | |
| BB DROP (mm) | 19 | |
| REAR CENTER (mm) | 469 | |
| WHEELBASE (mm) | 1205 | |
| SEAT TUBE LENGTH (mm) | 400 |
| A | TOP TUBE (mm) | 666 |
| B | REACH LENGTH (mm) | 478 |
| C | STACK HEIGHT (mm) | 624 |
| D | STANDOVER HEIGHT (mm) | 763 |
| E | HEAD TUBE LENGTH (mm) | 125 |
| F | HEAD TUBE ANGLE | 66.3° |
| G | SEAT TUBE ANGLE | 70.3° |
| HANDLEBAR WIDTH (mm) | 780 | |
| CRANK ARM LENGTH (mm) | 170 | |
| SEAT POST LENGTH (mm) | 459 | |
| STEM LENGTH (mm) | 40 | |
| BB DROP (mm) | 19 | |
| REAR CENTER (mm) | 469 | |
| WHEELBASE (mm) | 1253 | |
| SEAT TUBE LENGTH (mm) | 410 |
